Same model may have multiple batches, images only for reference.

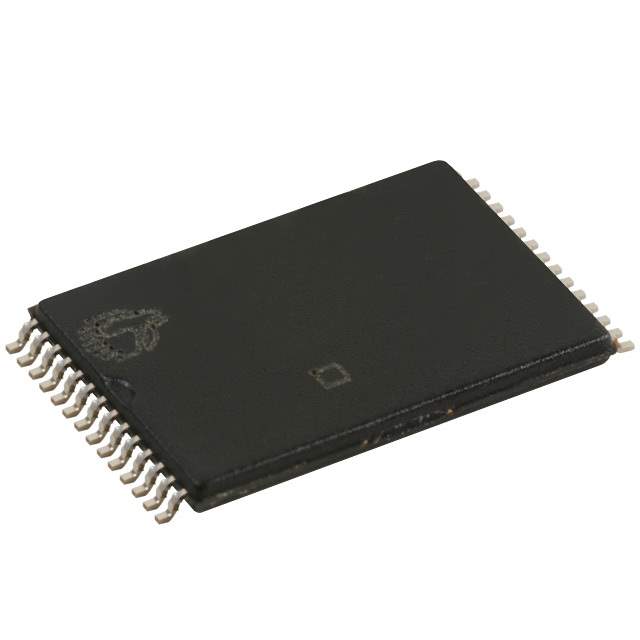

CY62256NLL-55ZXE Real Image
Same model may have multiple batches, images only for reference.

CY62256NLL-55ZXE

Part No CY62256NLL-55ZXE
Manufacturer Cypress Semiconductor Corp
Catalog SRAM
Description IC SRAM 256KBIT PAR 28TSOP I
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features SRAM - Asynchronous Memory IC 256Kb (32K x 8) Parallel 55 ns 28-TSOP I
Manufacturer Cypress Semiconductor Corp
Series MoBL®
Package Tube
Part Status Obsolete
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 28-TSSOP (0.465", 11.80mm Width)
Case / Package 28-TSOP I
Family Name CY62256
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0041
Other Part Number CY62256NLL55ZXE, -CY62256NLL
Quantity per package 234
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916329-CY62256NLL-55ZXE
Ultra Librarian 3D Model Ultra Librarian CY62256NLL-55ZXE CAD Model

Description

The Cypress Semiconductor Corp CY62256NLL-55ZXE is an obsolete SRAM - Asynchronous Memory IC with a capacity of 256Kb (32K x 8) Parallel and a speed of 55 ns.

  • Package: 28-TSSOP (0.465", 11.80mm Width)
  • Mounting: surface
  • Family: CY62256
  • Category: Integrated Circuits (ICs)
  • Popularity: high
  • Supply and Demand Status: balanced
  • Quantity per package: 234
  • MSL Level: 3 (168 Hours)
  • REACH: REACH unaffected
  • HTSUS: 8542.32.0041
