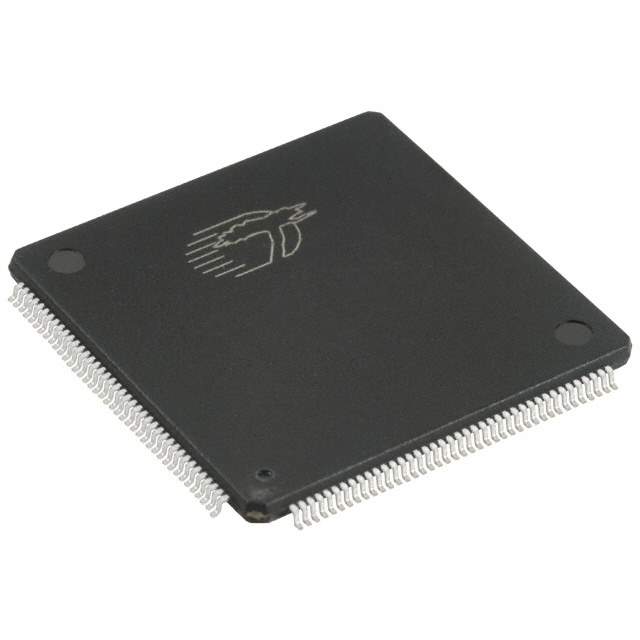

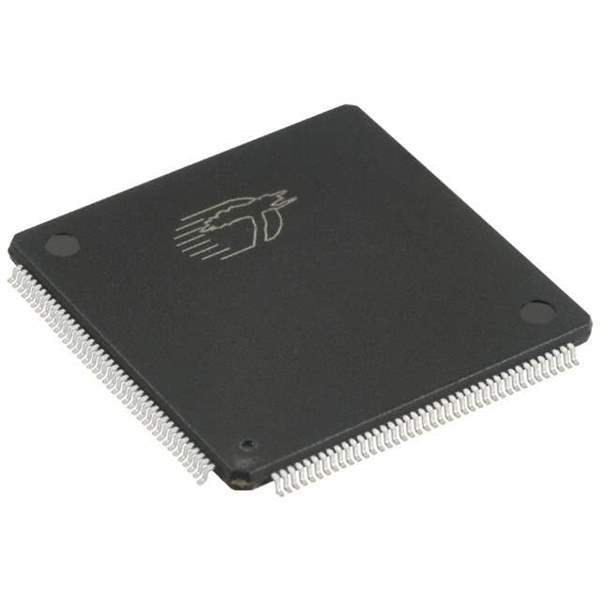

The CY37256P160-83AXI is a high-performance Complex Programmable Logic Device (CPLD) from Cypress Semiconductor. It offers a flexible and efficient solution for implementing a wide range of digital logic functions. This CPLD is designed to provide high speed and low power consumption, making it suitable for demanding applications.

Applications:

• Industrial control systems
• Networking equipment
• Data acquisition systems
• Telecommunications
• Medical devices

Features:

• 256 Macrocells
• 160 Pins
• High-speed operation: 83 MHz maximum frequency
• Low power consumption
• In-system programmability (ISP)
• Flexible I/O architecture
• Advanced pin-locking architecture

Benefits:

• High Performance: The CY37256P160-83AXI delivers high-speed performance, enabling it to handle complex logic functions efficiently.
• Design Flexibility: With 256 macrocells and a flexible I/O architecture, this CPLD offers a high degree of design flexibility, allowing designers to implement a wide range of custom logic circuits.
• Reduced Power Consumption: The low-power design of the CY37256P160-83AXI helps to minimize power consumption, making it suitable for battery-powered and energy-efficient applications.
• Simplified Design Process: The in-system programmability (ISP) feature allows for easy programming and debugging of the CPLD, simplifying the design process.

Additional Details:

The CY37256P160-83AXI CPLD is typically programmed using a hardware description language (HDL) such as VHDL or Verilog. Cypress provides development tools and software that can be used to compile and program the CPLD. The device features a JTAG interface for programming and debugging. The operating voltage and temperature range should be considered when designing with this CPLD. Refer to the Cypress datasheet for detailed specifications, including timing characteristics, power consumption, and package dimensions. The pin-locking architecture ensures that pin assignments remain consistent even when the design is modified.
