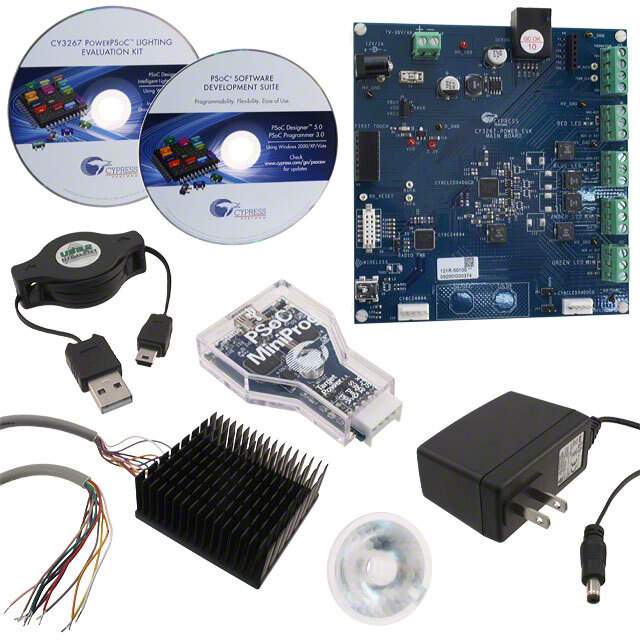

CY3267 Real Image
Same model may have multiple batches, images only for reference.

CY3267

Part No CY3267
Manufacturer Cypress Semiconductor Corp
Catalog Board Mount LED Drivers
Description KIT EVAL POWERPSOC LIGHTING / CY8CLEDxx 4, Non-Isolated Outputs LED Driver Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr Cypress Semiconductor Corp
Series PowerPSoC®
Package Box
Product Status Obsolete
Current - Output / Channel 1A
Outputs and Type 4, Non-Isolated
Voltage - Output 32V
Features Dimmable, I2C Interface
Voltage - Input 32V
Supplied Contents Board(s), Cable(s), Power Supply, Accessories
Utilized IC / Part CY8CLEDxx
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names 428-2281
Standard Package 1
Win Source Part Number 971276-CY3267
Ultra Librarian 3D Model Ultra Librarian CY3267 CAD Model

Description

The CY3267 evaluation board is a development kit for LED drivers. It features a dimmable function and an I2C interface. The output voltage is 32V and the input voltage is also 32V. The current output per channel is 1A, and there are four non-isolated outputs. The package comes with board(s), cable(s), power supply, and accessories. The CY8CLEDxx is the utilized IC/part for this evaluation board. The ECCN is EAR99, and the MSL level is 1 (unlimited). The product is obsolete, and the REACH status is unaffected.
