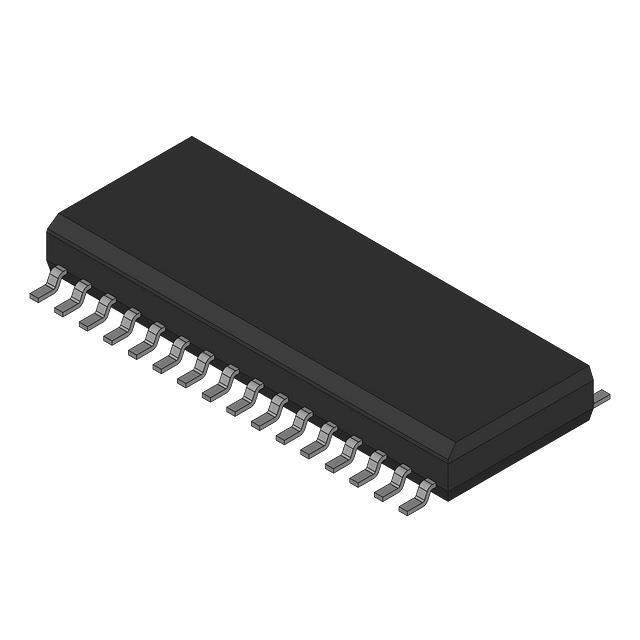

The CY14B104L-BA25XC is a 4-Mbit (256K x 16) Nonvolatile Static RAM (nvSRAM) manufactured by Cypress Semiconductor Corp. It combines high-performance SRAM technology with nonvolatile data storage, offering fast read and write capabilities along with inherent data retention when power is lost.

Applications

• Data logging: Used in applications requiring continuous data recording with no loss of data during power failures.
• Industrial control systems: Provides reliable memory for critical parameters and settings in harsh industrial environments.
• Medical devices: Ensures data integrity in medical equipment where data loss could have serious consequences.
• Networking equipment: Stores configuration settings and temporary data in routers, switches, and other networking devices.
• Automotive applications: Employed in automotive systems requiring nonvolatile memory, such as event data recorders and airbag control systems.

Features

• High-speed SRAM: Offers fast read and write access times, enabling high-performance operation.
• Nonvolatile data storage: Retains data indefinitely without power, eliminating the need for external battery backup.
• Automatic data protection: Automatically stores data to nonvolatile memory upon power loss.
• Wide operating voltage range: Operates over a broad voltage range, providing flexibility in system design.
• RoHS compliant: Meets environmental regulations for hazardous substances.

Benefits

• Data integrity: Ensures critical data is preserved even during power outages, preventing data loss and system failures.
• Simplified system design: Eliminates the need for external battery backup, reducing system complexity and cost.
• High performance: Provides fast read and write access times, enabling high-speed operation.
• Reliable operation: Offers robust performance in demanding environments, ensuring system stability.
• Long-term data retention: Retains data for extended periods without power, providing long-term data storage.

Additional Details

The CY14B104L-BA25XC utilizes Cypress's nvSRAM technology, which combines a standard SRAM cell with a nonvolatile storage element. During normal operation, the device functions as a standard SRAM, providing fast read and write access. When power is lost, the data in the SRAM is automatically transferred to the nonvolatile memory, ensuring data retention. Upon power restoration, the data is automatically transferred back to the SRAM. This automatic data protection mechanism ensures data integrity without requiring any external intervention.

The device is available in various package options and temperature grades to meet different application requirements. It is designed for applications where data integrity and reliability are paramount, making it an ideal choice for critical systems.
