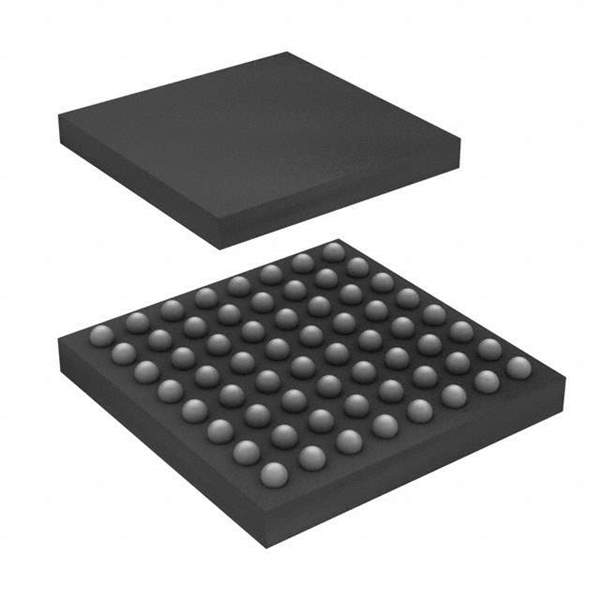

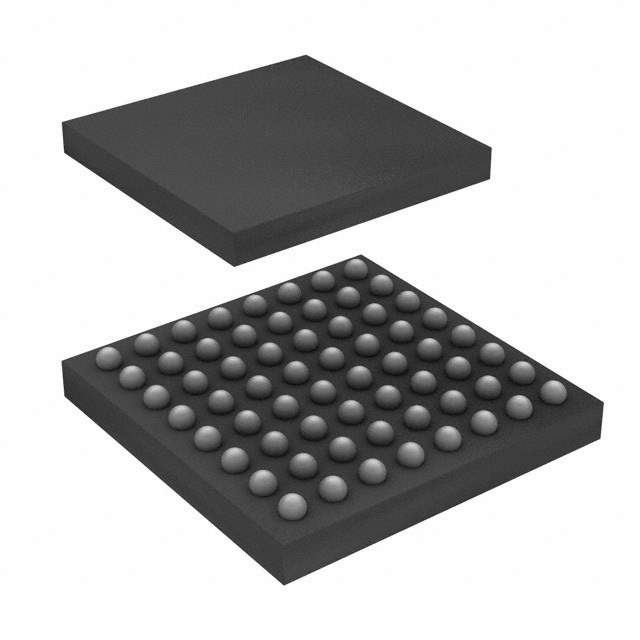

The BCM20730A2KFBG is a Bluetooth Low Energy (BLE) system-on-chip (SoC) from Cypress Semiconductor Corp (now Infineon Technologies). It's designed for low-power wireless applications requiring Bluetooth Smart or Bluetooth Low Energy connectivity. This SoC integrates a Bluetooth radio, a processor, and memory, offering a complete solution for Bluetooth Low Energy devices.

Applications

• Wearable Devices: Fitness trackers, smartwatches, and health monitoring devices.
• Medical Devices: Glucose meters, heart rate monitors, and other medical sensors.
• Beacons: Proximity marketing, indoor navigation, and asset tracking.
• Remote Controls: Bluetooth Smart remote controls for TVs, set-top boxes, and other devices.
• Human Interface Devices (HID): Wireless keyboards, mice, and game controllers.
• Internet of Things (IoT): Smart home devices, industrial sensors, and other connected devices.

Features

• Bluetooth Low Energy (BLE): Supports Bluetooth 4.0 and later standards, enabling low-power communication.
• Integrated Microcontroller: Features an ARM Cortex-M3 or similar microcontroller for application processing.
• On-Chip Memory: Includes Flash memory and RAM for program storage and data handling.
• Low Power Consumption: Optimized for battery-powered devices with various power-saving modes.
• Over-the-Air (OTA) Updates: Supports firmware updates via Bluetooth.
• Security Features: Includes hardware-based security features for secure communication.
• Peripheral Interfaces: Offers various interfaces such as UART, SPI, I2C, and ADC for connecting to external sensors and devices.

Benefits

• Low Power Consumption: Extends battery life in portable and wearable devices.
• Simplified Development: Integrated SoC reduces the complexity of hardware and software design.
• Cost-Effective Solution: Combines multiple functions into a single chip, reducing BOM cost.
• Enhanced Connectivity: Provides reliable and secure Bluetooth Low Energy connectivity.
• Flexibility: Supports a wide range of applications and use cases.
• Faster Time-to-Market: Pre-certified Bluetooth solution accelerates product development.

Additional Details

The BCM20730A2KFBG typically operates in the 2.4 GHz ISM band. It supports adaptive frequency hopping (AFH) to minimize interference. The device incorporates advanced power management techniques to optimize power consumption in various operating modes, including sleep, deep sleep, and active modes. The chip's small form factor allows for integration into compact devices. Reference designs and software development kits (SDKs) are generally available from Cypress/Infineon to facilitate application development. These SDKs usually include Bluetooth protocol stacks, sample applications, and debugging tools.
