Same model may have multiple batches, images only for reference.

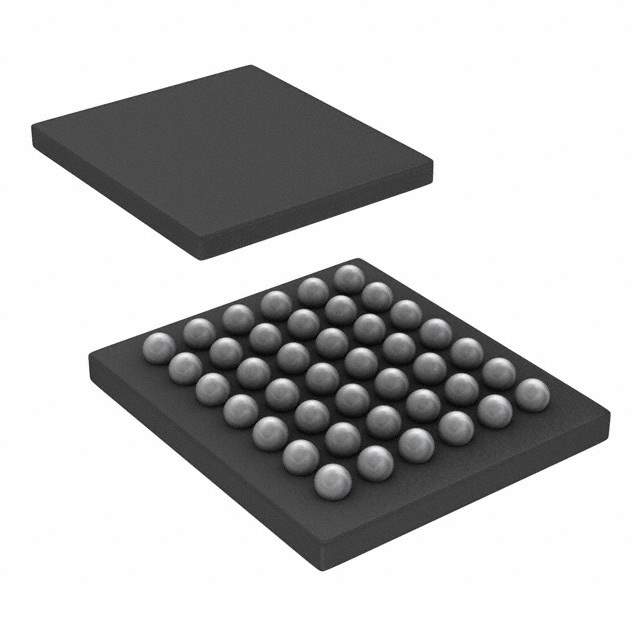

BCM20715A1KUBXGT Real Image
Same model may have multiple batches, images only for reference.

BCM20715A1KUBXGT

Part No BCM20715A1KUBXGT
Manufacturer Cypress Semiconductor Corp
Catalog RF Transceiver ICs
Description IOT BLUETOOTH 802.15.4
Datasheet
BCM20715A1KUBXGT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Cypress Semiconductor Corp
Packaging Reel package
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0 +EDR
Modulation 4DQPSK, 8DPSK, GFSK
Frequency 2.4GHz
Data Rate (Maximum) 3Mbps
Power - Output 10dBm
Sensitivity -91dBm
Serial Interfaces I2C, I2S, SPI, UART
GPIO 8
Operating Supply Voltage 2.3 V ~ 5.5 V
Current - Receiving 32mA
Current - Transmitting 65mA
Operating Temperature Range -30°C ~ 85°C
Package 42-UFBGA, WLBGA
Win Source Part Number 769733-BCM20715A1KUBXGT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BCM20715A1KUBXGT CAD Model

Description

The Cypress Semiconductor Corp BCM20715A1KUBXGT is a TxRx + MCU component from Cypress Semiconductor Corp.

  • Frequency: 2.4GHz
  • Operating Supply Voltage: 2.3 V to 5.5 V
  • Power Output: 10dBm
  • Sensitivity: -91dBm
  • Receiving Current: 32mA
  • Modulation: 4DQPSK, 8DPSK, GFSK
  • Maximum Data Rate: 3Mbps
  • Bluetooth RF Family/Standard: Bluetooth
  • Serial Interface: I2C, I2S, SPI, UART
  • GPIO: 8
  • Package: 42-UFBGA, WLBGA
