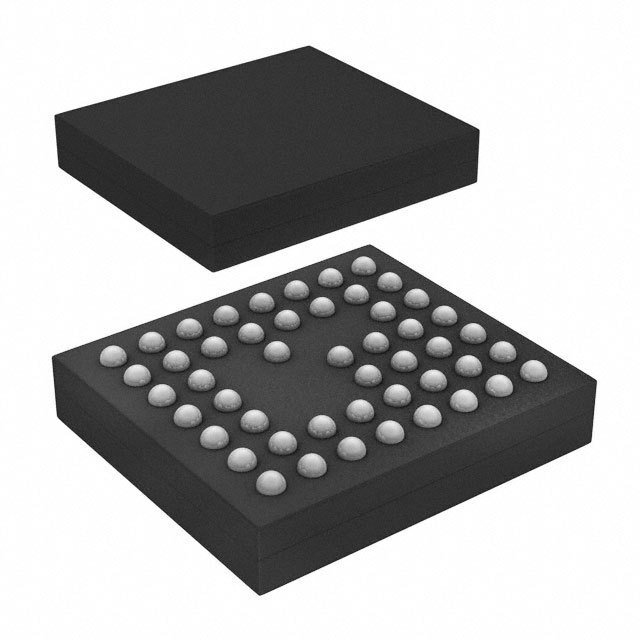

Same model may have multiple batches, images only for reference.
BCM20707UA1KFFB4G Cypress Semiconductor Corp
Same model may have multiple batches, images only for reference.

BCM20707UA1KFFB4G

Part No BCM20707UA1KFFB4G
Manufacturer Cypress Semiconductor Corp
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 49VFBGA / Complies with Bluetooth Core Specification version 4.2 including BR/EDR/BLE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cypress Semiconductor Corp
Packaging Tray
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.2
Frequency 2.4GHz
Data Rate (Maximum) 2Mbps
Power - Output 9dBm
Sensitivity -96.5dBm
Serial Interfaces I2S, SPI, UART
GPIO 8
Supply Voltage (V) 3.3V
Current - Receiving 26.4mA
Current - Transmitting 60mA
Temperature Range - Operating -30°C ~ 85°C
Mounting Style SMD
Manufacturer Package 49-VFBGA, FCBGA
Manufacturer Pack Quantity 490
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804970-BCM20707UA1KFFB4G
Ultra Librarian 3D Model Ultra Librarian BCM20707UA1KFFB4G CAD Model

Description

The Cypress Semiconductor Corp is a manufacturer of electronic components.

  • Win Source Part Number: 804970-BCM20707UA1KFFB4G
  • Type: TxRx + MCU
  • Mounting Style: SMD
  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.2
  • Power Output: 9dBm
  • Sensitivity: -96.5dBm
  • Current - Receiving: 26.4mA
  • RF Family/Standard: Bluetooth
  • Modulation: -
  • Serial Interfaces: I2S, SPI, UART
  • GPIO: 8
  • Current - Transmitting: 60mA
  • Operating Temperature Range: -30°C ~ 85°C
  • Manufacturer Package: 49-VFBGA, FCBGA
  • Data Rate (Maximum): 2Mbps
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 490
  • MSL Level: 3 (168 Hours)
  • Supply Voltage (V): 3.3V
