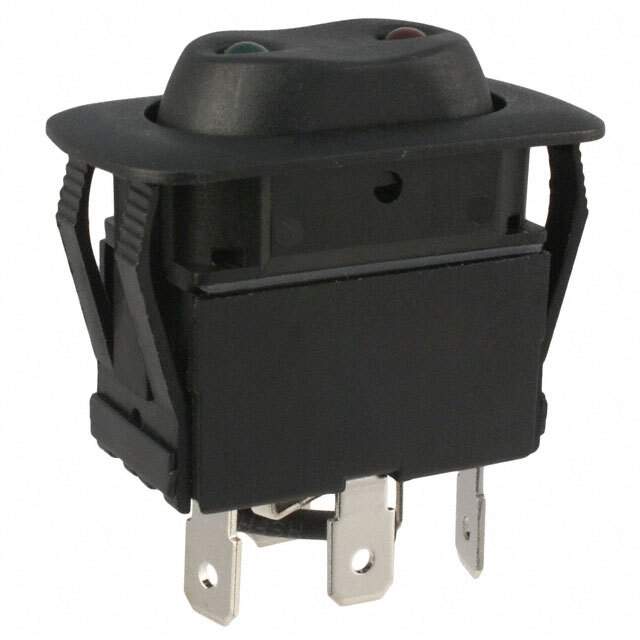

GRB263D2BBGR2D1 Real Image
Same model may have multiple batches, images only for reference.

GRB263D2BBGR2D1

Part No GRB263D2BBGR2D1
Manufacturer CW Industries
Catalog Rocker Switches
Description SWITCH ROCKER SPDT 21A 14V / Rocker Switch SPDT 21A (DC) Panel Mount, Snap-In
Datasheet
GRB263D2BBGR2D1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr CW Industries
Series GRB
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 21A (DC)
Voltage Rating - DC 14 V
Actuator Type Oval - Illuminated
Color - Actuator/Cap Black
Actuator Marking No Marking
Illumination Type, Color LED, Red/Green
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP56 - Dust Protected, Water Resistant
Panel Cutout Dimensions Rectangular - 36.60mm x 21.20mm
Temperature Range - Operating -20°C ~ 85°C
Mechanical Life 100,000 Cycles
Base Product Number GRB263D
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CW133
Standard Package 1,000
Win Source Part Number 1216144-GRB263D2BBGR2D1
Ultra Librarian 3D Model Ultra Librarian GRB263D2BBGR2D1 CAD Model

Description

The GRB263D series rocker switch from CW Industries is an On-Off-On switch with a voltage rating of 14 V DC.

  • Voltage Rating: 14 V DC
  • Circuit: SPDT
  • Termination Style: quick connect - 0.250" (6.3mm)
  • Ingress Protection: IP56 - Dust Protected, Water Resistant
  • Standard Package: 1,000
  • Panel Cutout Dimension: rectangular - 36.60mm x 21.20mm
  • Actuator Type: oval - illuminated
  • Illumination Type: LED
  • Color: red/green
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 100,000 cycles
  • Packaging: bulk
  • Operating Temperature Range: -20°C to 85°C
