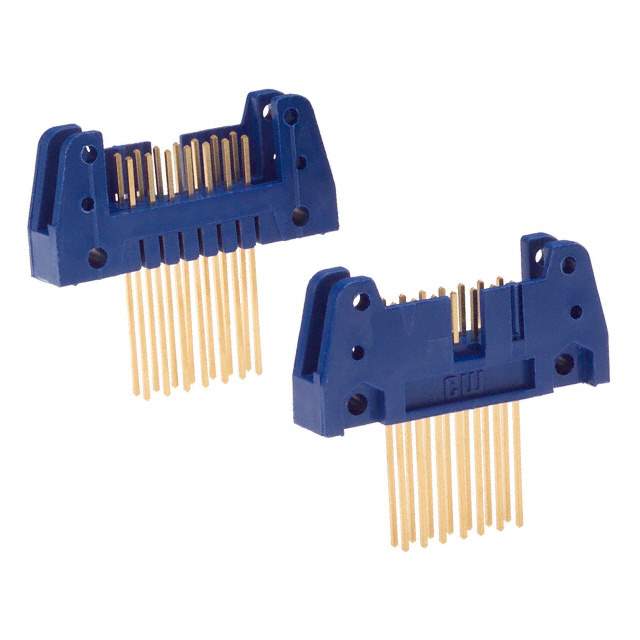

Same model may have multiple batches, images only for reference.

CWN-370-14-0000

Name: CWN-370-14-0000
Brand: CW Industries
SKU: 1338180
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CWN-370-14-0000
Manufacturer	CW Industries
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	CW Industries
Series	CWN
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Wire Wrap
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.610" (15.49mm)
Insulation Height	0.681" (17.30mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Nickel
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Current Rating (Amps)	1A
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	CWN-370
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338180-CWN-370-14-0000
Ultra Librarian 3D Model	Ultra Librarian CWN-370-14-0000 CAD Model

Alternative Products

Description

The CWN-370 series connector from CW Industries is a board to cable/wire style connector with a shrouded-4 wall shrouding.

Series: CWN-370
Style: Board to Cable/Wire
Shrouding: Shrouded-4 Wall
Pitch: 0.100" (2.54mm)
Positions: 14
Contact Type: Male Pin
Current Rating: 1A
Mounting Type: Through Hole
Fastening Type: Push-Pull
Operating Temperature Range: -55°C to 125°C
Insulation Material: Thermoplastic
Package: Bulk
Standard Package: 100
Contact Finish: Gold
Contact Finish Thickness: 10.0μin (0.25μm)
