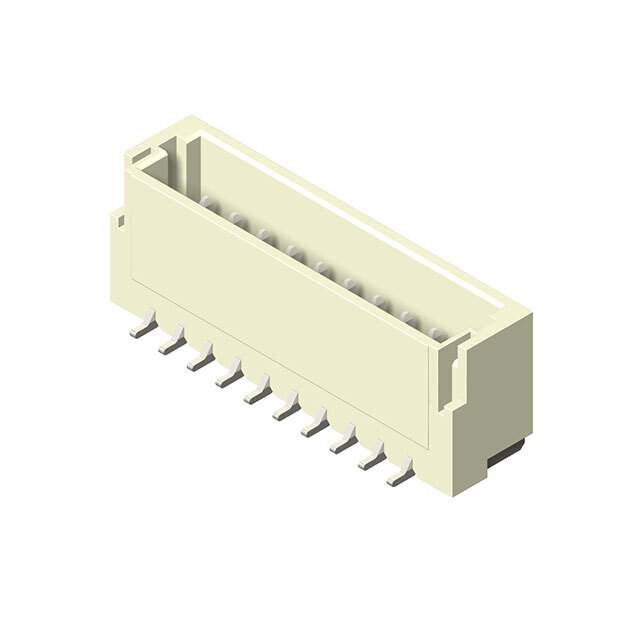

Same model may have multiple batches, images only for reference.

CI1107M1VR0-NH

Name: CI1107M1VR0-NH
Brand: Cvilux USA
SKU: 1188257
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CI1107M1VR0-NH
Manufacturer	Cvilux USA
Catalog	Rectangular Connectors
Description	7 POS 1.00MM(.039) SINGLE ROW ST / Connector Header Surface Mount 7 position 0.039" (1.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Cvilux USA
Series	CI11
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.069" (1.75mm)
Insulation Height	0.169" (4.30mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
Features	Pick and Place, Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A (AC/DC)
Voltage Rating	50VAC
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	CI1107M1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	,2987-CI1107M1VR0-NHDKR,2987-CI1107M1VR0-NHCT,2987-CI1107M1VR0-NH,2987-CI1107M1VR0-NHTR,2987-CI1107M1VR0-NH-ND
Standard Package	1,000
Win Source Part Number	1188257-CI1107M1VR0-NH
Ultra Librarian 3D Model	Ultra Librarian CI1107M1VR0-NH CAD Model

Alternative Products

Description

The CI11 series male pin header connector is a reliable and durable choice for your electronic projects.

Positions: 7
Pitch: 1.00mm
Connection Type: Board to Cable/Wire
Termination: Solder
Fastening: Detent Lock
Contact Material: Phosphor Bronze
Voltage Rating: 50VAC
Current: 1A (AC/DC)
Packaging: Tape & Reel
Mounting: SMD (SMT)
Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen-Free
Flammability Rating: UL94 V-0
Temperature Range: -25°C to 85°C
Pick and Place Compatible: Yes
Solder Retention: Yes
