Same model may have multiple batches, images only for reference.

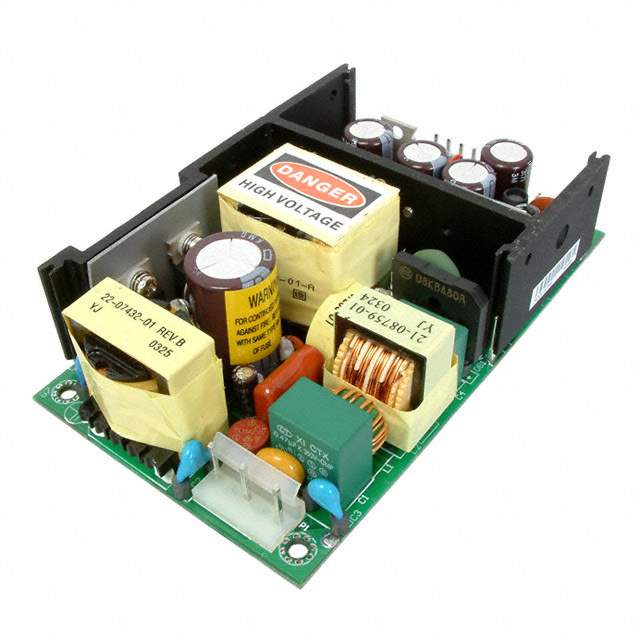

VSBU-120-T515A Real Image
Same model may have multiple batches, images only for reference.

VSBU-120-T515A

Part No VSBU-120-T515A
Manufacturer CUI Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 5V +/-15V 120W / AC/DC Power Supply Triple-OUT 5V/15V/-15V 15A/6A/0.8A 120W 16-Pin
Datasheet
VSBU-120-T515A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - External/Internal (Off-Board)
Manufacturer CUI Inc.
Series VSBU-120-T
Type Open Frame
Number of Outputs 3
Voltage - Input 90 ~ 260 VAC
Voltage - Output 1 5V
Voltage - Output 2 15V
Voltage - Output 3 -15V
Current - Output (Maximum) 15A, 6A, 800mA
Power (Watts) 120W
Applications ITE (Commercial)
Voltage - Isolation 4.242kV (4242V)
Efficiency 80%
Operating Temperature Range 0°C ~ 70°C
Features PFC, Universal Input
Mounting Chassis Mount
Dimension 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm)
Minimum Load Required No
Approvals CE, cURus, GS
Win Source Part Number 796128-VSBU-120-T515A
Popularity Medium
Supply and Demand Status Limited
Family Name VSBU-120-T
Introduction Date December 08, 2006
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian VSBU-120-T515A CAD Model

Description

The VSBU-120-T515A is an open-frame electronic component manufactured by CUI Inc.

  • Series: VSBU-120-T
  • Application: ITE (Commercial)
  • Power Rating: 120W
  • Input: Universal
  • PFC: Yes
  • Operating Temperature Range: 0°C ~ 70°C
  • Outputs: 3
  • Output Voltages: 5V, 15V, and -15V
  • Efficiency: 80%
  • Voltage Input Range: 90 ~ 260 VAC
  • Voltage Isolation: 4.242kV (4242V)
  • Mounting Style: Chassis Mount
  • Approvals: CE, cURus, and GS
  • Category: Power Supplies - External/Internal (Off-Board)
  • Supply and Demand Status: Limited
