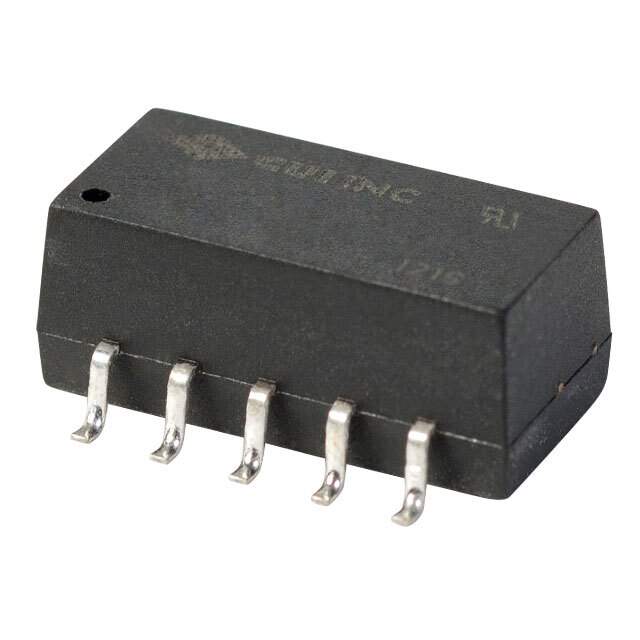

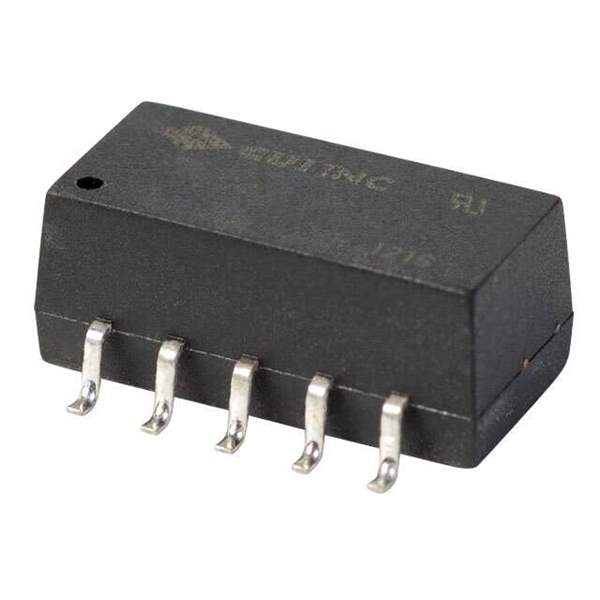

The VAT1-S5-D5-SMT is a DC-DC converter manufactured by CUI Inc. It is designed to convert a 5V DC input voltage to a 5V DC output voltage with isolation. This isolated DC-DC converter is commonly used in applications where electrical isolation between the input and output is required for safety, noise reduction, or to break ground loops.

Applications:

• Industrial Control Systems: Isolating sensitive control circuits from noisy power supplies.
• Medical Equipment: Ensuring patient safety by isolating patient-connected circuits.
• Instrumentation: Breaking ground loops and reducing noise in measurement circuits.
• Communication Systems: Isolating communication interfaces to prevent interference.
• Power over Ethernet (PoE) Applications: Providing isolated power to network devices.

Features:

• Isolated DC-DC Converter: Provides electrical isolation between input and output.
• 5V Input and 5V Output: Converts 5V DC to 5V DC.
• Surface Mount Package: Designed for automated assembly on printed circuit boards.
• Compact Size: Saves board space in space-constrained applications.
• High Efficiency: Converts power efficiently, minimizing heat dissipation.
• Short Circuit Protection: Protects the converter and the load from damage due to short circuits.

Benefits:

• Enhanced Safety: Electrical isolation protects users and equipment from dangerous voltages.
• Reduced Noise: Isolation breaks ground loops and reduces noise in sensitive circuits.
• Improved System Reliability: Protection features prevent damage from fault conditions.
• Simplified Design: Compact size and surface mount package simplify PCB layout.
• Efficient Power Conversion: High efficiency minimizes heat generation and reduces power consumption.

Additional Details:

The VAT1-S5-D5-SMT typically provides an isolation voltage of 1kVDC or higher. The output current capability is typically around 200mA, but this is heavily dependant on the exact datasheet revision. The exact specifications, including input voltage range, output current, isolation voltage, efficiency, and operating temperature range, can be found in the official CUI Inc. datasheet. Additional considerations include input and output capacitance requirements, thermal derating information, and recommended PCB layout guidelines. These parameters are critical for the proper and safe application of the DC-DC converter.
