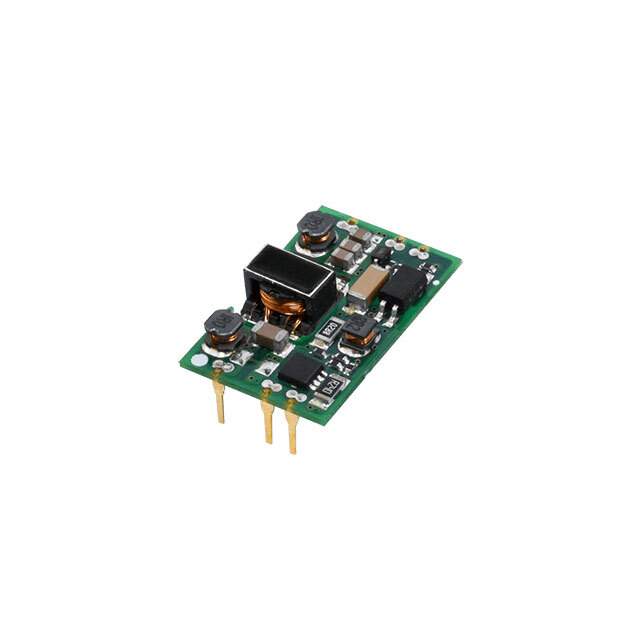

Same model may have multiple batches, images only for reference.

PYBJ3-D24-S5-OD

Name: PYBJ3-D24-S5-OD
Brand: CUI Inc.
SKU: 1351022
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PYBJ3-D24-S5-OD
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 36V Input
Datasheet	PYBJ3-D24-S5-OD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PYBJ3 (3W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	600mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	77%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	0.94" L x 0.59" W x 0.24" H (24.0mm x 15.1mm x 6.2mm)
Approval Agency	CE
Base Product Number	PYBJ3
Standard Package	10
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1351022-PYBJ3-D24-S5-OD
Ultra Librarian 3D Model	Ultra Librarian PYBJ3-D24-S5-OD CAD Model

Alternative Products

Description

The PYBJ3 (3W) isolated module DC-DC converter is an ideal power supply solution for ITE (Commercial) applications.

Power Output: 3 W
Voltage Isolation: 1.5 kV
Maximum Output Current: 600mA
Efficiency: 77%
Operating Temperature: -40°C to 85°C (with derating)
Mounting Type: Through Hole
Package: 6-DIP Module
Input Voltage Range: 9V to 36V
Output Voltage: 5V
Package Size: 0.94" L x 0.59" W x 0.24" H (24.0mm x 15.1mm x 6.2mm)
Package Quantity: Tray package of 10
