Same model may have multiple batches, images only for reference.

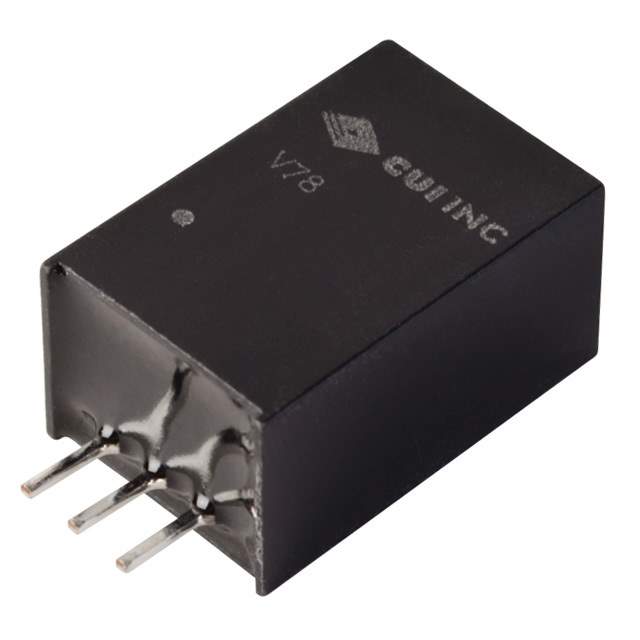

V7824W-500 Real Image
Same model may have multiple batches, images only for reference.

V7824W-500

Part No V7824W-500
Manufacturer CUI Inc.
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 24V 7.2W / Linear Regulator Replacement DC DC Converter 1 Output 24V 300mA 36V - 72V Input
Datasheet
V7824W-500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series V78W-500
Package Tube
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 72V
Voltage - Output 1 24V
Current - Output (Max) 300mA
Power (Watts) 7.2 W
Applications ITE (Commercial)
Features OTP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 95%
Mounting Type Through Hole
Package / Case 3-SIP Module
Dimension 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
Base Product Number V7824W
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2266-V7824W-500,V7824W500,102-2458,656-93016R
Standard Package 44
Win Source Part Number 1108613-V7824W-500
Ultra Librarian 3D Model Ultra Librarian V7824W-500 CAD Model

Description

The CUI Inc. V78W-500 is a linear regulator replacement that is known for its high-quality performance and reliability.

  • Type: Power Supply Board Mount DC-DC Converter
  • Control Features: OTP and SCP
  • Manufacturer: CUI Inc.
