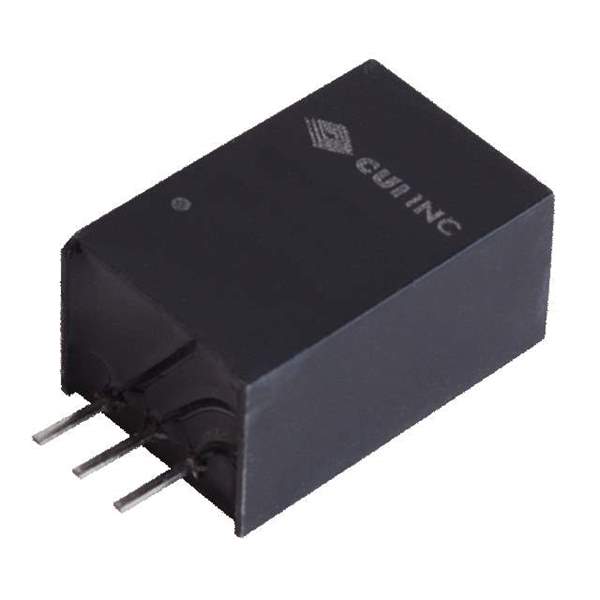

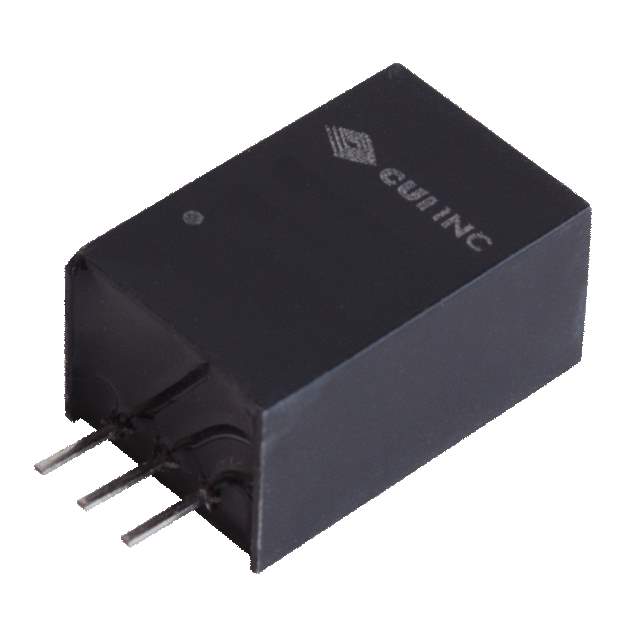

V7805-1000 Real Image
Same model may have multiple batches, images only for reference.

V7805-1000

Part No V7805-1000
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 5W / Linear Regulator Replacement DC DC Converter 1 Output 5V 1A 6.5V - 32V Input
Datasheet
V7805-1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series V78-1000
Package Tube
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 6.5V
Voltage - Input (Max) 32V
Voltage - Output 1 5V
Current - Output (Max) 1A
Power (Watts) 5 W
Applications ITE (Commercial)
Features OTP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93%
Mounting Type Through Hole
Package / Case 3-SIP Module
Dimension 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
Base Product Number V7805
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 656-90602R,102-1715,V78051000,Q4649018
Standard Package 44
Win Source Part Number 1010820-V7805-1000
Ultra Librarian 3D Model Ultra Librarian V7805-1000 CAD Model

Description

The CUI Inc. V78-1000 series linear regulator replacement, Win Source Part Number 1010820-V7805-1000, is a 5W DC DC converter.

  • Features: OTP, SCP, and 93% efficiency
  • Package: 3-SIP module
  • Temperature Range: -40°C to 85°C
  • Outputs: 1
  • Maximum Output Current: 1A
  • Input Voltage: 6.5V to 32V
  • Voltage Output: 5V
  • Control Features: Not Applicable
