Same model may have multiple batches, images only for reference.

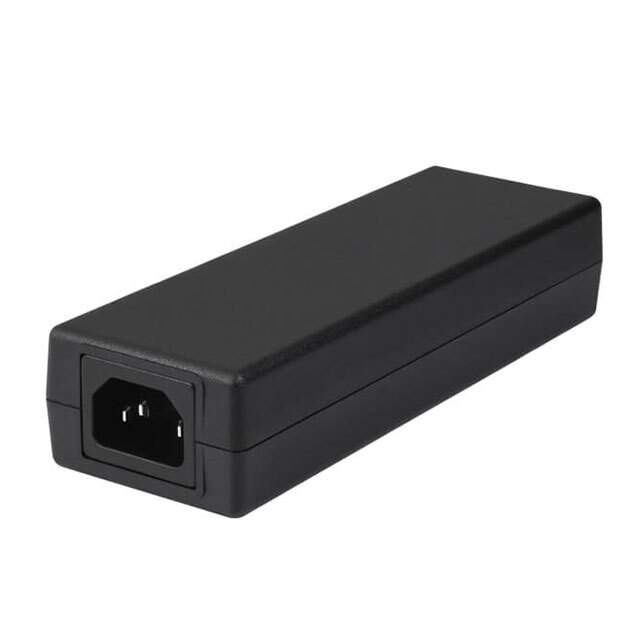

SDI160G-24-U-P51 Real Image
Same model may have multiple batches, images only for reference.

SDI160G-24-U-P51

Part No SDI160G-24-U-P51
Manufacturer CUI Inc.
Catalog AC DC Desktop, Wall Adapters
Description AC/DC DESKTOP ADAPTER 24V 158W / 24V 158 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Datasheet
SDI160G-24-U-P51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Desktop, Wall Adapters
Mfr CUI Inc.
Series GaN, SDI160G-U (160W)
Package Box
Region Utilized International
Form Desktop (Class I)
Input Type Cord (Sold Separately)
Voltage - Input 90 ~ 264 VAC
Voltage - Output 24V
Current - Output (Max) 6.6A
Power (Watts) 158 W
No Load Power Consumption 150mW (Max)
Applications ITE (Commercial)
Efficiency 90%
Temperature Range - Operating 0°C ~ 40°C
Output Connector Power DIN, 4 Pin
Cord Length 59" (1.50m)
Input Connector IEC 320-C14
Dimension 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm)
Approval Agency EN, FCC, PSE, UL
Standard Number 55024; 55032 Class B; 61000-3-2; 61000-3-3; 62368-1
Base Product Number SDI160
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9530
Other Names 102-SDI160G-24-U-P51
Standard Package 24
Win Source Part Number 1162058-SDI160G-24-U-P51
Ultra Librarian 3D Model Ultra Librarian SDI160G-24-U-P51 CAD Model

Description

The CUI Inc. SDI160G-24-U-P51 is an external/internal power supply that is commonly used in commercial ITE applications.

  • Series: GaN, SDI160G-U (160W)
  • Power Output: 158W
  • Input Voltage: 90 ~ 264 VAC
  • Efficiency: 90%
  • Approvals: EN, FCC, PSE, and UL
