Same model may have multiple batches, images only for reference.

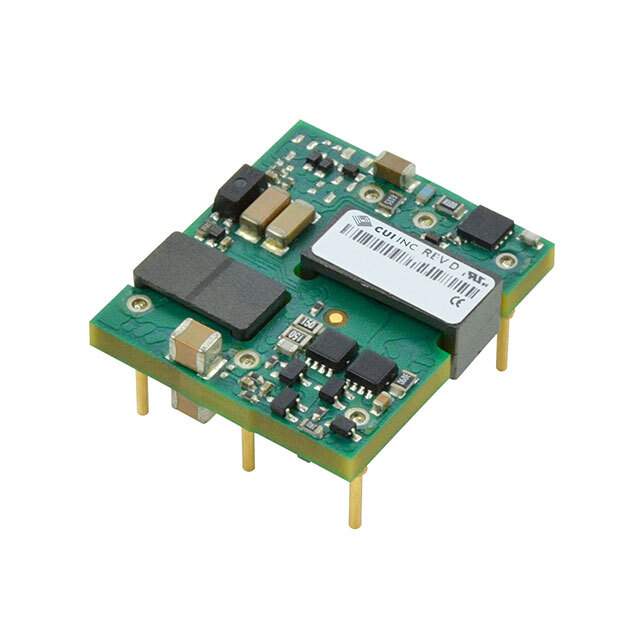

PRD25-D48-S3-P-D Real Image
Same model may have multiple batches, images only for reference.

PRD25-D48-S3-P-D

Part No PRD25-D48-S3-P-D
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 25W / Isolated Module DC DC Converter 1 Output 3.3V 7.5A 36V - 75V Input
Datasheet
PRD25-D48-S3-P-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series PRD25 (25W)
Package Box
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 7.5A
Power (Watts) 25 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89.5%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.10" L x 0.96" W x 0.33" H (27.9mm x 24.4mm x 8.4mm)
Control Features Enable, Active High
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2266-PRD25-D48-S3-P-D,102-3726
Standard Package 90
Win Source Part Number 1022312-PRD25-D48-S3-P-D
Ultra Librarian 3D Model Ultra Librarian PRD25-D48-S3-P-D CAD Model

Description

The PRD25 (25W) is an isolated module power supply offered by CUI Inc.

  • Mounting Type: through hole
  • Package/Case: 6-DIP module
  • Application: ITE (Commercial)
  • Standard Package: 90
  • Power Output: 25W
  • Output: single
  • Maximum Current Output: 7.5A
  • Voltage Output: 3.3V
  • Efficiency: 89.5%
  • Operating Temperature: -40°C ~ 85°C
  • Approvals: CB Scheme, EN, FCC, IEC, and UL
