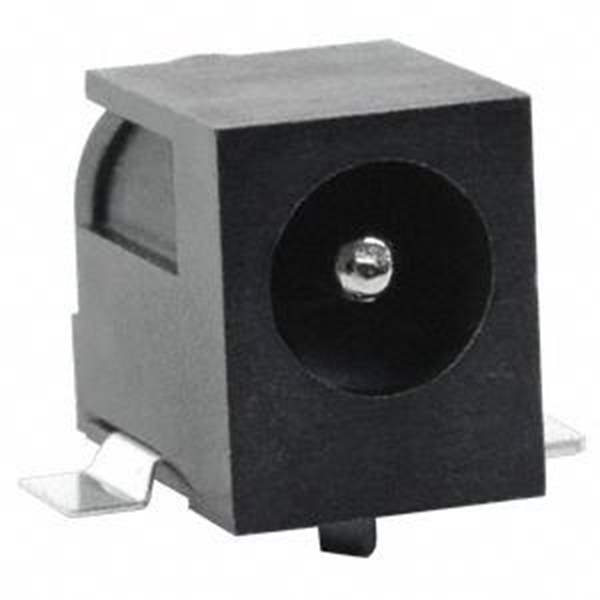

PJ-036A-SMT-TR CUI Inc.
Same model may have multiple batches, images only for reference.

PJ-036A-SMT-TR

Part No PJ-036A-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2X5.5MM SOLDER
Datasheet
PJ-036A-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer CUI Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter 0.078" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Surface Mount, Right Angle
Termination Solder
Voltage Rating 16VDC
Current Rating 2.5A
Contact Material - Plating Silver
Temperature Range - Operating -25°C to 85°C
Housing Material Polyamide (PA6T), Nylon 6T
Body Color Black
Material Flammability Rating UL94 V-0
Win Source Part Number 1089301-PJ-036A-SMT-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PJ-036A-SMT-TR CAD Model

Description

The CUI Inc. PJ-036A-SMT-TR is a male jack connector that is suitable for various electronic applications.

  • Voltage Rating: 16VDC
  • Current Rating: 2.5A
  • Housing Material: Polyamide (PA6T), Nylon 6T
  • Flammability Rating: UL94 V-0
  • Mounting Style: Surface-Mount, Right-Angle
  • Conductors: 2
  • Contacts: 3
  • Status: Obsolete (EOL)
