Same model may have multiple batches, images only for reference.

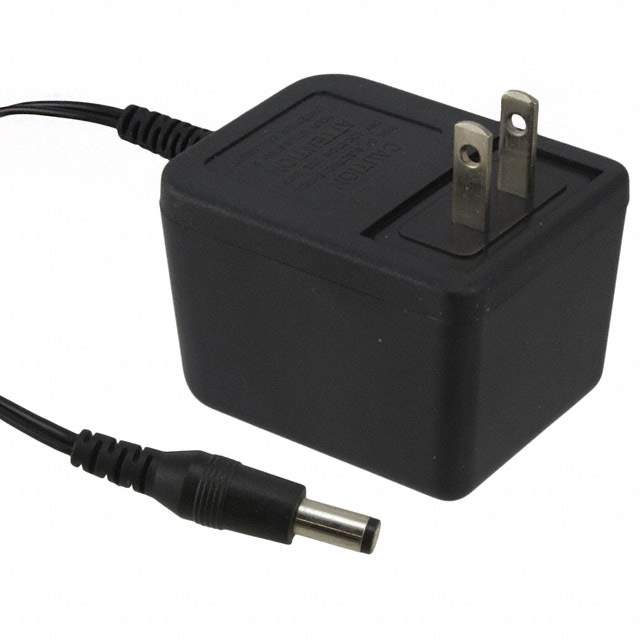

EPA060100-P5-SZ Real Image
Same model may have multiple batches, images only for reference.

EPA060100-P5-SZ

Part No EPA060100-P5-SZ
Manufacturer CUI Inc.
Catalog AC AC Wall Adapters
Description AC/AC WALL MOUNT ADAPTER 6V 6W / 6VAC 1A AC/AC External Wall Mount Adapter Fixed Blade Input
Datasheet
EPA060100-P5-SZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC AC Wall Adapters
Mfr CUI Inc.
Series EPA
Package Box
Product Status Obsolete
Region Utilized North America
Form Wall Mount
Input Type Fixed Blade
Voltage - Input 120VAC
Voltage - Output 6VAC
Current - Output (Max) 1A
Power (Watts) 6 W
Applications ITE (Commercial)
Efficiency Level IV
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm
Dimension 1.65" L x 2.01" W x 2.47" H (42.0mm x 51.0mm x 62.7mm)
Approval Agency cULus
Input Connector NEMA 1-15P
Cord Length 72" (1.83m)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.7001
Other Names 035-1339R,T1124-P5,EPA060100P5SZ
Standard Package 60
Win Source Part Number 1201227-EPA060100-P5-SZ
Ultra Librarian 3D Model Ultra Librarian EPA060100-P5-SZ CAD Model

Description

The CUI Inc. EPA060100P5SZ is an AC AC wall adapter that has a power of 6W and an output voltage of 6VAC.

  • Power: 6W
  • Output Voltage: 6VAC
  • Package Type: Box
  • Standard Package: 60
  • Application: ITE (Commercial)
  • Input Type: Fixed Blade
  • Current Output (max): 1A
  • Efficiency: Level IV
  • Region: North America
  • Form: Wall Mount
  • Output Connector: Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm
  • Input Connector: NEMA 1-15P
  • Cord Length: 72" (1.83m)
  • HTSUS: 8504.40.7001
