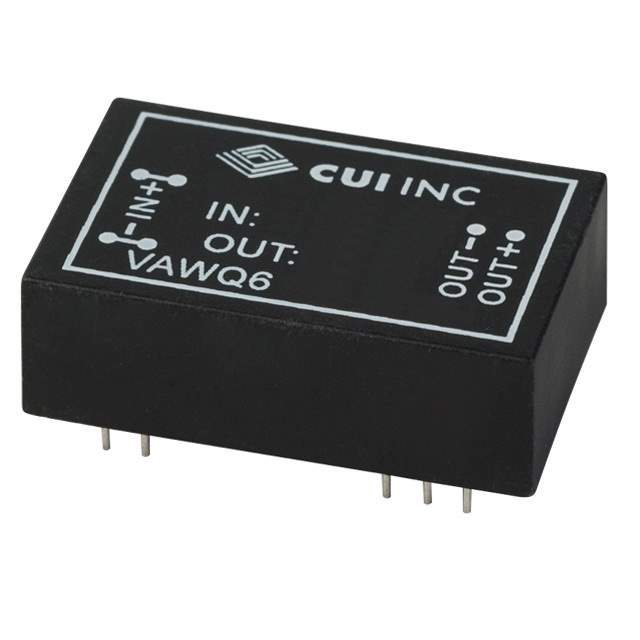

Same model may have multiple batches, images only for reference.

VAWQ6-Q24-D15H

Name: VAWQ6-Q24-D15H
Brand: CUI Inc.
SKU: 1320585
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	VAWQ6-Q24-D15H
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 6W / Isolated Module DC DC Converter 2 Output 15V -15V 190mA, 190mA 9V - 36V Input
Datasheet	VAWQ6-Q24-D15H Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	CUI Inc.
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	190mA, 190mA
Power (Watts)	6 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-25°C ~ 71°C
Efficiency	78%
Mounting	Through Hole
Case / Package	24-DIP Module, 15 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	VAWQ6
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	VAWQ6Q24D15H,102-1320,659-40591R,Q7191577D
Standard Package	10
Win Source Part Number	1320585-VAWQ6-Q24-D15H
Ultra Librarian 3D Model	Ultra Librarian VAWQ6-Q24-D15H CAD Model

Alternative Products

Description

The CUI Inc. VAWQ6-Q24-D15H is a reliable isolated module DC-DC converter that is perfect for use in electronic devices that require a high-quality component.

Product Type: power supply board mount
Power: 6W
Voltage Isolation: 3kV
Features: SCP
Temperature Range: -25°C to 71°C
RoHS Compliant: Yes
