Same model may have multiple batches, images only for reference.

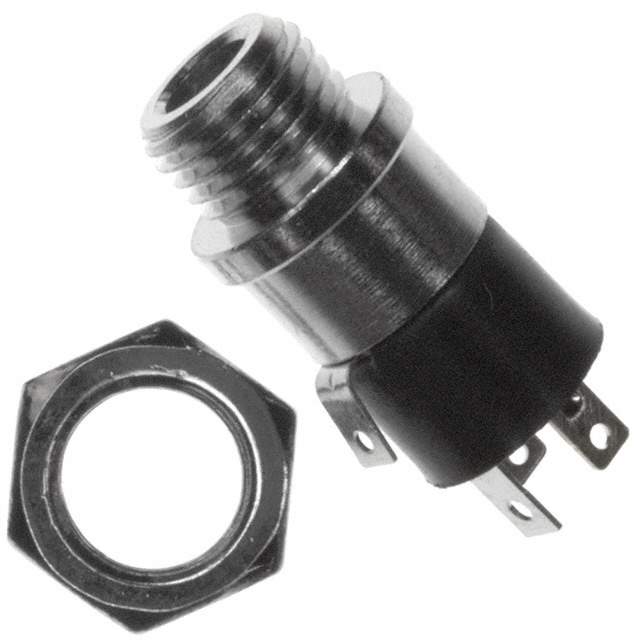

SJ5-43502PM Real Image
Same model may have multiple batches, images only for reference.

SJ5-43502PM

Part No SJ5-43502PM
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK 4COND 3.5MM PNL MT / 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder Eyelet(s)
Datasheet
SJ5-43502PM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Audio Connectors
Manufacturer CUI Devices
Packaging Box
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 4 Conductors, 4 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Panel Mount
Termination Solder Eyelet(s)
Shielding Unshielded
Temperature Range - Operating -20°C ~ 60°C
Voltage - Rated 34VAC/DC
Current Rating (Amps) 1 A
Contact Material - Plating Nickel
Body Material Brass
Body Color Silver, Black
Housing Material Polybutylene Terephthalate (PBT)
Contact Material Copper Alloy
Panel Hole Size 0.276" (7.00mm)
Base Product Number SJ5-43
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Part Number 2266-SJ5-43502PM,Q5843683,SJ543502PM,045-1340R,CP5-43502PM
Standard Package 1,000
Win Source Part Number 1333963-SJ5-43502PM
Ultra Librarian 3D Model Ultra Librarian SJ5-43502PM CAD Model

Description

The CUI Devices SJ5-43502PM is a female phone jack connector designed for use in audio connectors.

  • Conductor: 4
  • Contact: 4
  • Shielding: Unshielded
  • Voltage Rating: 34VAC/DC
  • Current Rating: 1A
  • Mounting Type: Panel Mountable
  • Contact Material Plating: Nickel
  • Popularity: High
  • Supply and Demand Status: Balanced
