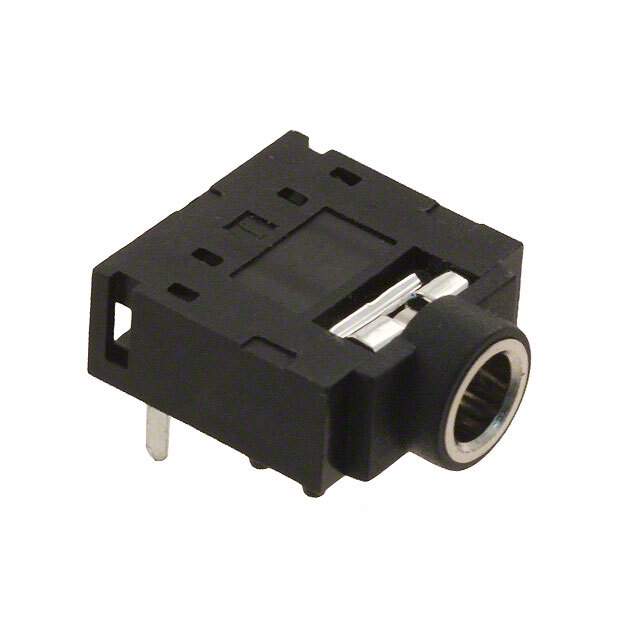

SJ1-3523NG Real Image
Same model may have multiple batches, images only for reference.

SJ1-3523NG

Part No SJ1-3523NG
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK STEREO 3.5MM R/A / 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Datasheet
SJ1-3523NG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Audio Connectors
Manufacturer CUI Devices
Packaging Tray
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 3 Conductors, 3 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Temperature Range - Operating -25°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Tin
Body Color Black
Housing Material Polybutylene Terephthalate (PBT)
Contact Material Brass; Copper Alloy
Base Product Number SJ1-35
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number CP1-3523NG,2266-SJ1-3523NG,SJ13523NG,045-0978R
Standard Package 160
Win Source Part Number 1333964-SJ1-3523NG
Ultra Librarian 3D Model Ultra Librarian SJ1-3523NG CAD Model

Description

The SJ1-3523NG phone jack connector from CUI Devices is designed for use in audio connectors.

  • Gender: Female
  • Conductor: 3
  • Contact: 3
  • Shielding: Shielded
  • Contact Material: Brass and Copper Alloy
  • Plating: Tin
  • Mounting Type: Through Hole
  • Orientation: Right-Angle
  • Voltage Rating: 12VDC
  • Operating Temperature Range: -25°C to 85°C
  • RoHS: Approved
  • Standard Package: 160
