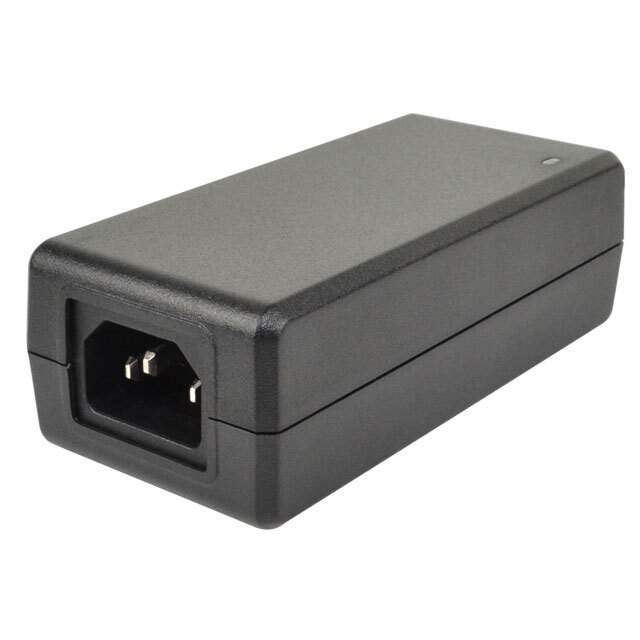

SDI65-48-U-P5 Real Image
Same model may have multiple batches, images only for reference.

SDI65-48-U-P5

Part No SDI65-48-U-P5
Manufacturer CUI Inc.
Catalog AC DC Desktop, Wall Adapters
Description AC/DC DESKTOP ADAPTER 48V 65W / 48V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Datasheet
SDI65-48-U-P5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Desktop, Wall Adapters
Mfr CUI Inc.
Series SDI65-U (65W)
Package Box
Region Utilized International
Form Desktop (Class I)
Input Type Cord (Sold Separately)
Voltage - Input 90 ~ 264 VAC
Voltage - Output 48V
Current - Output (Max) 1.36A
Power (Watts) 65 W
No Load Power Consumption 210mW (Max)
Polarization Positive Center
Applications ITE (Commercial)
Efficiency Level VI, CoC Tier 2
Temperature Range - Operating 0°C ~ 40°C
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Cord Length 59" (1.50m)
Input Connector IEC 320-C14
Size / Dimension 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm)
Approval Agency CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL
Standard Number C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
Weight 0.684 lb (310.26 g)
Base Product Number SDI65
Standard Package 40
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9520
Win Source Part Number 1349817-SDI65-48-U-P5
Ultra Librarian 3D Model Ultra Librarian SDI65-48-U-P5 CAD Model

Description

The CUI SDI65-U series external/internal AC-DC desktop/wall adapter has a box package with a size/dimension of 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm).

  • Package: Box
  • Size: 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm)
  • Power: 65W
  • Output Voltage: 48V
  • Input Voltage: 90 ~ 264 VAC
  • Current Output (Max): 1.36A
  • Efficiency: Level VI, CoC Tier 2
  • Polarization: Positive Center
  • Weight: 0.684 lb (310.26 g)
  • Applications: ITE (Commercial)
  • Operating Temperature: 0°C to 40°C
