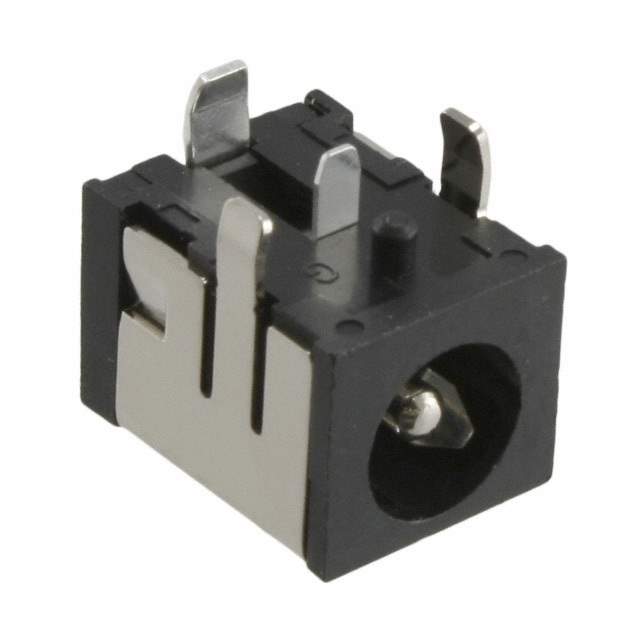

PJ-063AH

Name: PJ-063AH
Brand: CUI Inc.
SKU: 1334379
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PJ-063AH
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	CONN PWR JACK 2X5.5MM SOLDER / Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet	PJ-063AH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer	CUI Devices
Packaging	Bag
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter	0.079" (2.00mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts	2 Conductors, 2 Contacts
Internal Switch(s)	Does Not Contain Switch
Mounting	Through Hole, Right Angle
Termination	Solder
Shielding	Shielded
Features	Board Guide
Voltage - Rated	24VDC
Current Rating (Amps)	8 A
Mating Length/Depth	0.348" (8.85mm)
Material Flammability Rating	UL94 V-0
Contact Material - Plating	Silver
Temperature Range - Operating	-25°C ~ 85°C
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material	Brass, Copper Alloy
Body Color	Black
Base Product Number	PJ-063
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	045-1399R,PJ063AH,CP-063AH,PJ-063AH-ND
Standard Package	500
Win Source Part Number	1334379-PJ-063AH
Ultra Librarian 3D Model	Ultra Librarian PJ-063AH CAD Model

Description

The CUI Devices PJ-063AH is a through-hole, right angle power connector with a rated voltage of 24 VDC and a current rating of 8 A.

Rated Voltage: 24 VDC
Current Rating: 8 A
Conductors: 2
Contacts: 2
Material: polybutylene terephthalate (PBT)
Connector: male jack
Shielded: yes
Contact Material Plating: silver
Mating Diameter: 2.10 mm ID (0.083") and 5.50 mm OD (0.217")
Mating Length/Depth: 0.348" (8.85 mm)
Application: power connector applications
Supplied In: bag
Standard Package: 500
