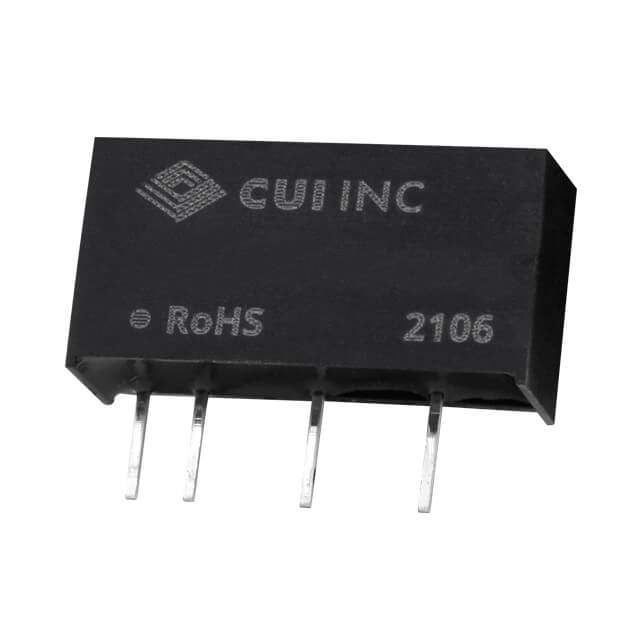

PEME1-S12-S5-S

Name: PEME1-S12-S5-S
Brand: CUI Inc.
SKU: 1350270
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PEME1-S12-S5-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC-DC ISOLATED 3KV, 1 W, 10.8~13 / Isolated Module DC DC Converter 1 Output 5V 200mA 10.8V - 13.2V Input
Datasheet	PEME1-S12-S5-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PEME1-S (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	80%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Approval Agency	CE, cURus
Standard Number	62368-1
Standard Package	25
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350270-PEME1-S12-S5-S
Ultra Librarian 3D Model	Ultra Librarian PEME1-S12-S5-S CAD Model

Alternative Products

Description

The PEME1-S12-S5-S is an isolated module DC-DC converter from CUI Inc., designed for use in commercial applications. CUI Inc.

Application: Commercial
Power Rating: 1W
Voltage Isolation: 3kV
Current Output: 200mA
Voltage Input Range: 10.8V to 13.2V
Efficiency: 80%
Operating Temperature: -40°C to 105°C (with derating)
Package: 7-SIP Module, 4 leads
Approvals: CE, cURus
ECCN: EAR99
