Same model may have multiple batches, images only for reference.

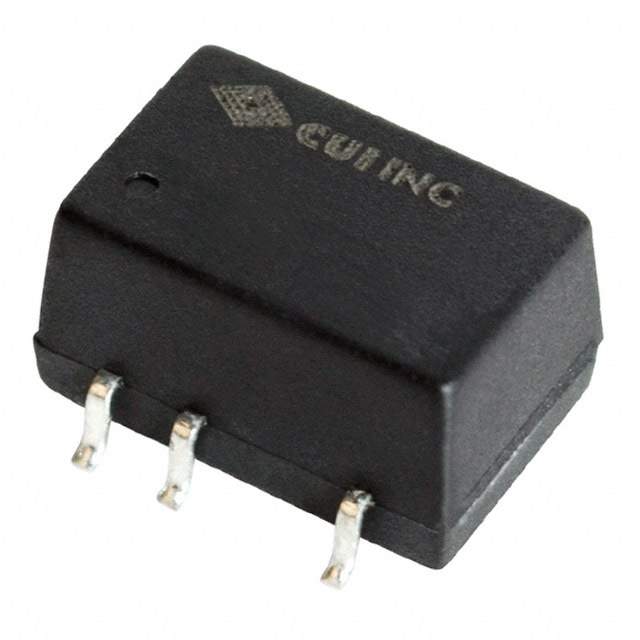

PDS1-S3-S5-M-TR Real Image
Same model may have multiple batches, images only for reference.

PDS1-S3-S5-M-TR

Part No PDS1-S3-S5-M-TR
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 2.97V - 3.63V Input
Datasheet
PDS1-S3-S5-M-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PDS1-M (1W)
Package Tape & Reel
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 2.97V
Voltage - Input (Max) 3.63V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 74%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Approval Agency EN, UL
Standard Number 55024; 55032 Class A; 60950-1
Base Product Number PDS1-S3
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1340368-PDS1-S3-S5-M-TR
Ultra Librarian 3D Model Ultra Librarian PDS1-S3-S5-M-TR CAD Model

Description

The PDS1-S3 series isolated module DC-DC converter from CUI Inc. has a power rating of 1 W and a voltage isolation rating of 1.5 kV. Bold the product name (e.g., BAV99S,135 → PDS1-S3 series) and manufacturer (e.g., Nexperia USA Inc. → CUI Inc.).

  • Type: Isolated Module DC-DC Converter
  • Power: 1 W
  • Voltage Isolation: 1.5 kV
  • Current Output: 200mA
  • Voltage Input: 2.97V to 3.63V
  • Efficiency: 74%
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 105°C (with derating)
  • Size/Dimension: 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
  • Standard Package: 500
  • Package/Case: 8-SMD Module, 5 Leads
  • Approvals: EN, UL
