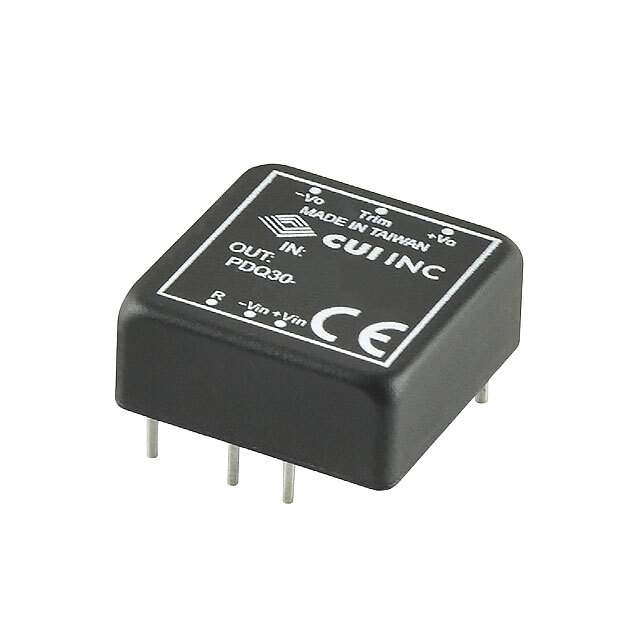

Same model may have multiple batches, images only for reference.

PDQ30-Q24-S5-D

Name: PDQ30-Q24-S5-D
Brand: CUI Inc.
SKU: 1351058
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PDQ30-Q24-S5-D
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 30W / Isolated Module DC DC Converter 1 Output 5V 6A 9V - 36V Input
Datasheet	PDQ30-Q24-S5-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PDQ30-D (30W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	6A
Power (Watts)	30 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	90%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	PDQ30
Standard Package	12
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1351058-PDQ30-Q24-S5-D
Ultra Librarian 3D Model	Ultra Librarian PDQ30-Q24-S5-D CAD Model

Alternative Products

Description

The CUI Inc. PDQ30-D (30W) series isolated module, Win Source Part Number 1351058-PDQ30-Q24-S5-D, is a 30W DC DC converter.

Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Efficiency: 90%
Package: 6-DIP Module
Temperature Range: -40°C to 105°C
Number of Outputs: 1
Maximum Output Current: 6A
Input Voltage Range: 9V to 36V
Voltage Output: 5V
Control Features: Enable, Active High
