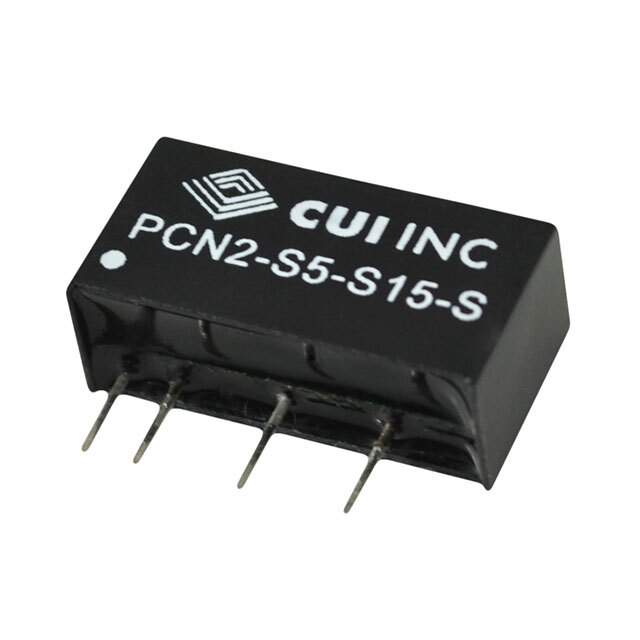

Same model may have multiple batches, images only for reference.

PCN2-S24-S5-S

Name: PCN2-S24-S5-S
Brand: CUI Inc.
SKU: 1348973
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PCN2-S24-S5-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 21.6V - 26.4V Input
Datasheet	PCN2-S24-S5-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PCN2-S (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	5V
Current - Output (Max)	400mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	79%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm)
Approval Agency	EN
Standard Number	55032 Class A
Base Product Number	PCN2-S24
Standard Package	14
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1348973-PCN2-S24-S5-S
Ultra Librarian 3D Model	Ultra Librarian PCN2-S24-S5-S CAD Model

Alternative Products

Description

The PCN2-S (2W) series isolated module power supply from CUI Inc. is designed for use in ITE (Commercial) applications.

Application: ITE (Commercial)
Protection: SCP (Short Circuit Protection)
Voltage Isolation: 1 kV
Maximum Output Current: 400mA
Efficiency: 79%
Input Voltage Range: 21.6V and 26.4V
Output Voltage: 5V
Mounting Type: Through Hole
Package: 6-SIP Module, 4 Leads
Size: 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm)
Operating Temperature Range: -40°C and 100°C
Approvals: EN
Standard Number: 55032 Class A
