Same model may have multiple batches, images only for reference.

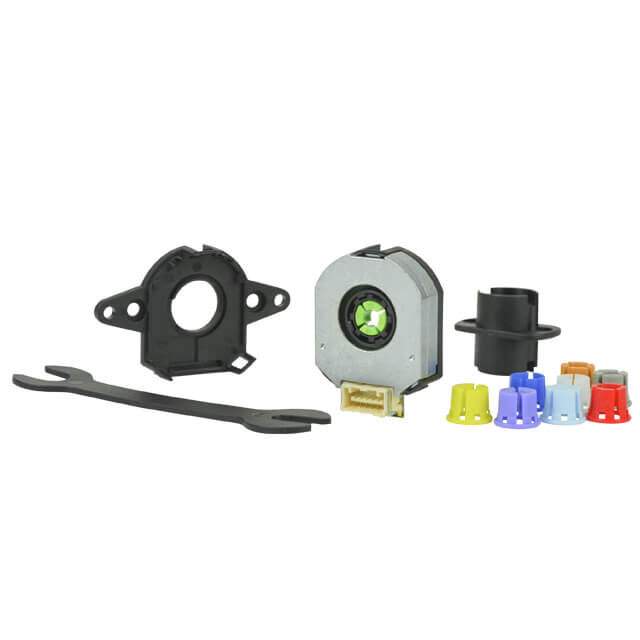

AMT223B-V Real Image
Same model may have multiple batches, images only for reference.

AMT223B-V

Part No AMT223B-V
Manufacturer CUI Inc.
Catalog Encoders
Description KIT AMT223B 14-BIT SPI ABSOLUTE
Datasheet
AMT223B-V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders - Industrial
Manufacturer CUI Devices
Packaging Box
Encoder Type Absolute
Output Type SPI
Pulses per Revolution Programmable
Voltage - Supply 3.8V ~ 5.5V
Actuator Type Open Center
Detent No
Built in Switch Yes
Mounting Chassis Mount, Motors
Orientation Right Angle
Termination Style Connector
Base Product Number AMT223B
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.20.0000
Other Part Number 102-5924
Standard Package 100
Win Source Part Number 1323774-AMT223B-V
Ultra Librarian 3D Model Ultra Librarian AMT223B-V CAD Model

Description

The AMT223B-V is an absolute encoder manufactured by CUI Devices.

  • Packaging: Box
  • Orientation: Right-Angle
  • Termination Style: Connector
  • Output Type: Programmable pulses per revolution
  • Voltage Supply: 3.8V to 5.5V
  • Switch: Built-in
  • Actuator Type: Open center
  • Rotational Life: Detent-free
  • ROHS3 Compliant: Yes
  • REACH Unaffected: Yes
