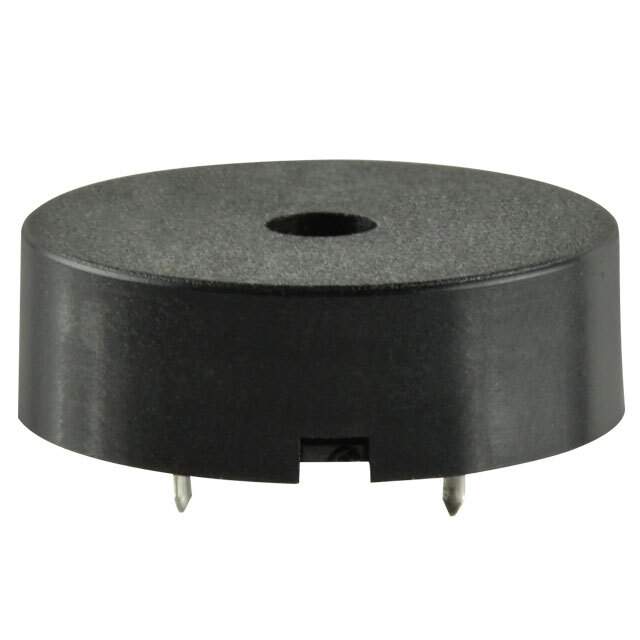

CPT-2272C-200 Real Image
Same model may have multiple batches, images only for reference.

CPT-2272C-200

Part No CPT-2272C-200
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO TRANSDUCER 20V TH
Datasheet
CPT-2272C-200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer CUI Inc.
Series CPT
Packaging Bulk
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage Rating DC 12V
Voltage Range 20V (Maximum)
Frequency 4kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 90dB @ 12V, 10cm
Operating Supply Current 10mA
Port Location Top
Operating Temperature Range -20°C ~ 60°C
Mounting Style Through Hole
Termination PC Pins
Dimension 0.866" Dia (22.00mm)
Height - Seated (Maximum) 0.339" (8.60mm)
Win Source Part Number 761851-CPT-2272C-200
Popularity Medium
Supply and Demand Status Limited
Family Name CPT-2272C-200
Introduction Date April 15, 2016
ECCN EAR99
Estimated EOL Date 2032
Ultra Librarian 3D Model Ultra Librarian CPT-2272C-200 CAD Model

Description

The CPT-2272C-200 piezo transducer from CUI Inc..

  • Mounting Style: Through hole
  • Operating Temperature Range: -20 degrees Celsius to 60 degrees Celsius
  • Frequency: 4kHz
  • Input Type: Peak-peak signal
  • Tone Mode: Single
  • Sound Pressure Level (SPL): 90dB @ 12V, 10cm
  • Voltage Rating DC: 12V
  • Operating Supply Current: 10mA
  • Applications: Audio products
  • Popularity: Medium
  • ECCN: EAR99
  • EOL Date: Estimated 2032
