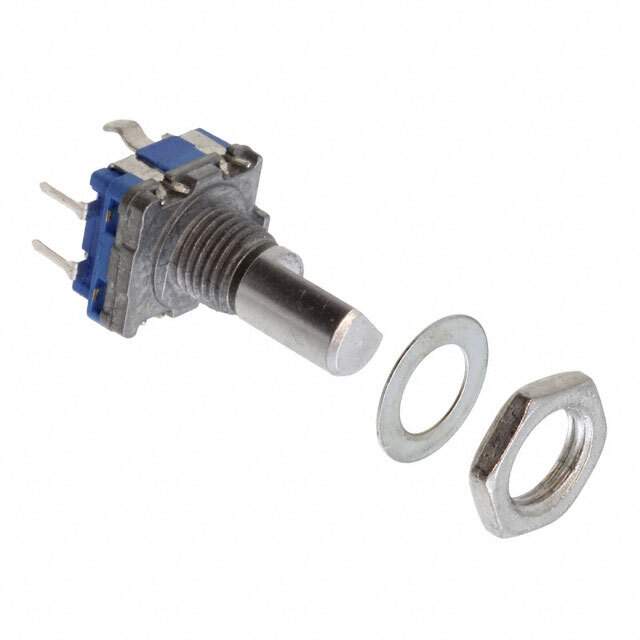

ACZ11BR1E-15FD1-12C Real Image
Same model may have multiple batches, images only for reference.

ACZ11BR1E-15FD1-12C

Part No ACZ11BR1E-15FD1-12C
Manufacturer CUI Inc.
Catalog Encoders
Description ROTARY ENCODER INCREMENT 12PPR / Rotary Encoder Incremental 12 Quadrature (Incremental) Vertical
Datasheet
ACZ11BR1E-15FD1-12C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr CUI Devices
Series ACZ11
Package Box
Encoder Type Incremental
Output Type Quadrature (Incremental)
Pulses per Revolution 12
Voltage - Supply 5V
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 30K
Base Product Number ACZ11BR1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Other Names 074-0617R,ACZ11BR1E15FD112C,102-1759
Standard Package 60
Win Source Part Number 1042634-ACZ11BR1E-15FD1-12C
Ultra Librarian 3D Model Ultra Librarian ACZ11BR1E-15FD1-12C CAD Model

Description

The CUI Devices ACZ11BR1E-15FD1-12C encoder is a vertical orientation PC pin termination style sensor.

  • Orientation: Vertical
  • Termination: PC pin
  • Switch: Built-in
  • Actuator Type: 6mm dia flatted end
  • Output Type: Quadrature (incremental)
  • Detent: Yes
  • Rotational Life: 30K cycles min
  • Voltage Supply: 5V
  • Pulses per Revolution: 12
  • Encoder Type: Incremental
  • Mounting: Panel and PCB through hole
  • Standard Package: 60
  • OEM: Yes
  • Cross-Reference: No alternative parts available
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS: 8543.70.4500
