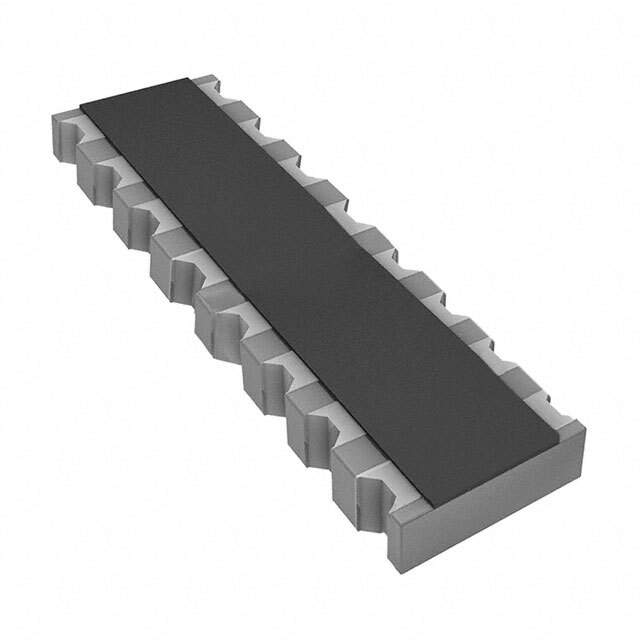

742C163472JP Real Image
Same model may have multiple batches, images only for reference.

742C163472JP

Part No 742C163472JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 4.7K OHM 2506
Datasheet
742C163472JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer CTS Resistor Products
Series 742
Circuit Type Isolated
Resistance (Ohms) 4.7k
Tolerance ±5%
Number of Resistors 8
Number of Pins 16
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2506, Concave, Long Side Terminals
Manufacturer Package 0603
Dimension 0.252" L x 0.063" W (6.40mm x 1.60mm)
Height - Seated (Maximum) 0.028" (0.70mm)
Win Source Part Number 764769-742C163472JP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 742C163472JP CAD Model

Description

The 764769-742C163472JP from CTS Resistor Products is a resistor network array.

  • Circuit Type: Isolated
  • Resistors: 8
  • Pins: 16
  • Resistance: 4.7k ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Per Element: 62.5mW
  • Package: 2506, Concave, Long Side Terminals
  • Height: 0.028" (0.70mm)
  • Operating Temperature: -55°C to 125°C
  • Mounting: Surface-mount device (SMD)
  • Package: 0603
