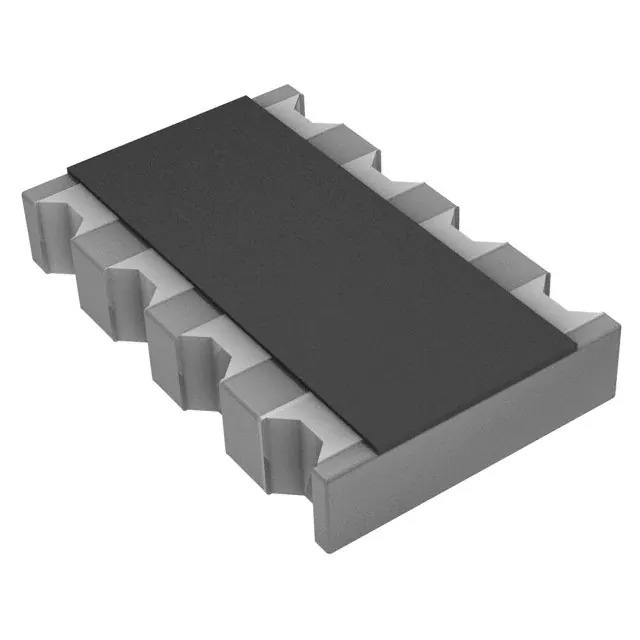

742C083470JP CTS Resistor Products
Same model may have multiple batches, images only for reference.

742C083470JP

Part No 742C083470JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 47 OHM 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr CTS Resistor Products
Series 742
Package Tape & Reel
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 47
Tolerance ±5%
Number of Resistors 4
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Number of Pins 8
Power Per Element 63mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200, DDR SDRAM, DRAM, MDDR
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave, Long Side Terminals
Supplier Device Package -
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Base Product Number 742C083
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1374159-742C083470JP
Ultra Librarian 3D Model Ultra Librarian 742C083470JP CAD Model

Description

The 1374159-742C083470JP is a resistor network array manufactured by CTS Resistor Products. It belongs to the 742 series and is designed for surface mount applications.

  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Package/Case: 1206 (3216 Metric)
  • Resistance: 47 ohms
  • Tolerance: ±5%
  • Number of Resistors: 4
  • Power per Element: 63mW
  • Circuit Type: Isolated
  • Applications: automotive AEC-Q200, DDR SDRAM, DRAM, and MDDR
  • Temperature Range: -55°C to 125°C
  • Temperature Coefficient: ±200ppm/°C
  • Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
