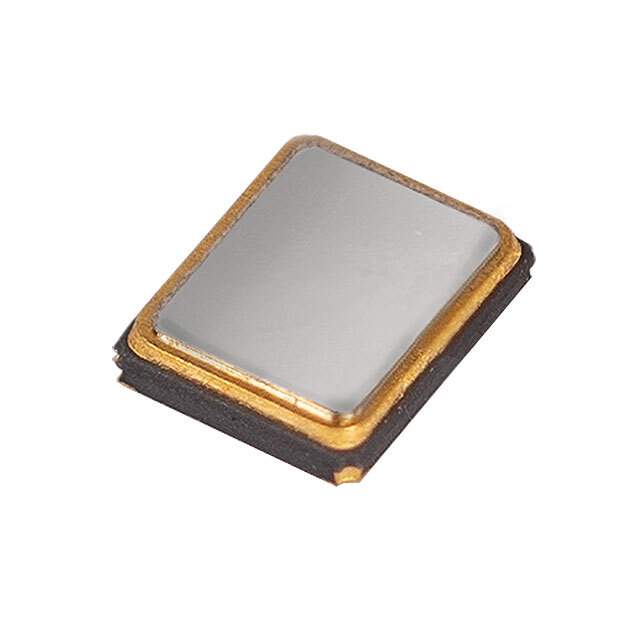

SA534125F35HLR Real Image
Same model may have multiple batches, images only for reference.

SA534125F35HLR

Part No SA534125F35HLR
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description CRYSTAL 12.5000MHZ 12PF SMD / 12.5 MHz ±30ppm Crystal 12pF 60 Ohms 4-SMD, No Lead
Datasheet
SA534125F35HLR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr CTS-Frequency Controls
Series SA534
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 12.5 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 110-SA534125F35HLRTR
Standard Package 1,000
Win Source Part Number 1038572-SA534125F35HLR
Ultra Librarian 3D Model Ultra Librarian SA534125F35HLR CAD Model

Description

The CTS-Frequency Controls SA534125F35HLR is a MHz crystal oscillator with a frequency of 12.5 MHz.

  • Frequency: 12.5 MHz
  • ESR: 60 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Package: 4-SMD, No Lead
  • Operating Temperature: -40°C to 125°C
  • Popularity: High
