Same model may have multiple batches, images only for reference.

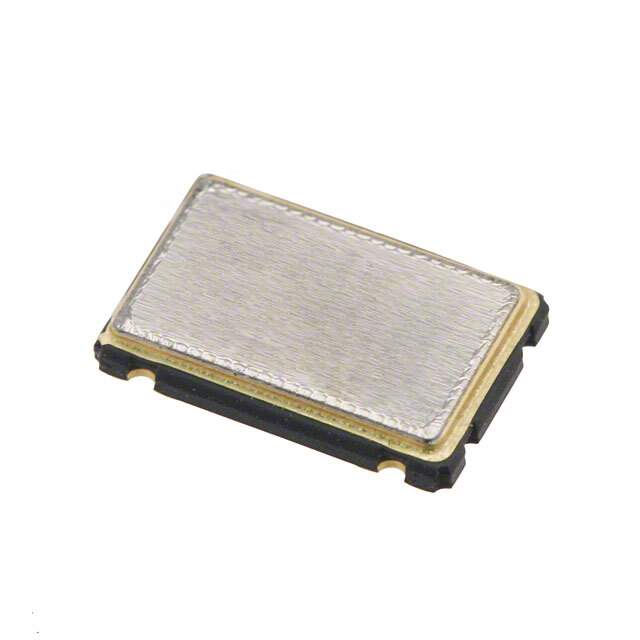

CB3-3C-9M830400 Real Image
Same model may have multiple batches, images only for reference.

CB3-3C-9M830400

Part No CB3-3C-9M830400
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 9.8304MHZ HCMOS TTL / 9.8304 MHz XO (Standard) HCMOS, TTL Oscillator 5V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr CTS-Frequency Controls
Series CB3
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 9.8304 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 5V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 25mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 1338529-CB3-3C-9M830400
Ultra Librarian 3D Model Ultra Librarian CB3-3C-9M830400 CAD Model

Description

The CTS-Frequency Controls 1338529-CB3-3C-9M830400 is a surface mount crystal oscillator (XO) that operates @ a frequency of 9.8304 MHz.

  • Package: 4-SMD, no lead
  • Height: 0.071 inches
  • Function: Enable/Disable
  • Output: HCMOS and TTL
  • Frequency Stability: ±50ppm
  • Current Supply: 25mA
  • Maximum Voltage Supply: 5V
  • Description: The oscillator is suitable for use in electronic devices that require a high frequency oscillator.
