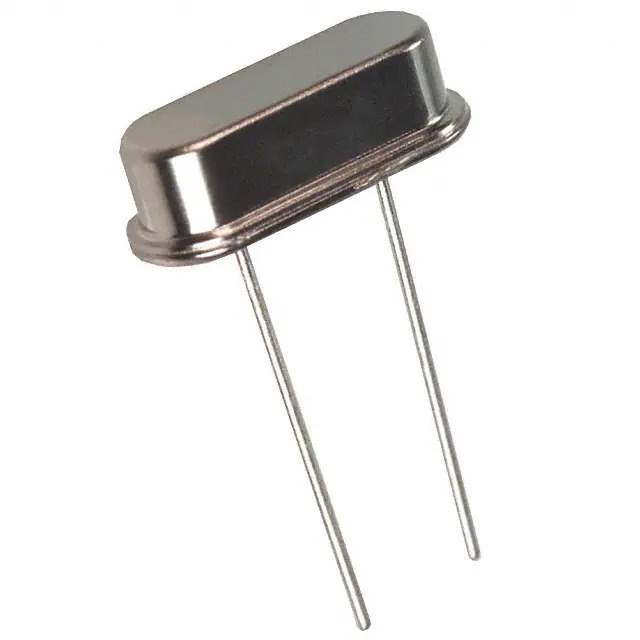

ATS250B-E Real Image
Same model may have multiple batches, images only for reference.

ATS250B-E

Part No ATS250B-E
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description CRYSTAL 25.0000MHZ 18PF TH / 25 MHz ±30ppm Crystal 18pF 30 Ohms HC-49/US
Datasheet
ATS250B-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr CTS-Frequency Controls
Series ATS
Package Bulk
Product Status Active
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.427" L x 0.177" W (10.85mm x 4.50mm)
Height - Seated (Max) 0.145" (3.68mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
California Prop 65 Warning Information
Win Source Part Number 912130-ATS250B-E
Ultra Librarian 3D Model Ultra Librarian ATS250B-E CAD Model

Description

The 912130-ATS250B-E is a MHz crystal from the ATS series.

  • Package: Bulk
  • Size: 0.427" L x 0.177" W (10.85mm x 4.50mm)
  • Height: 0.145" (3.68mm)
  • Frequency: 25 MHz
  • ESR: 30 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Operating Temperature: -40°C to 85°C
  • Mounting: Through hole
  • Package: HC-49/US
