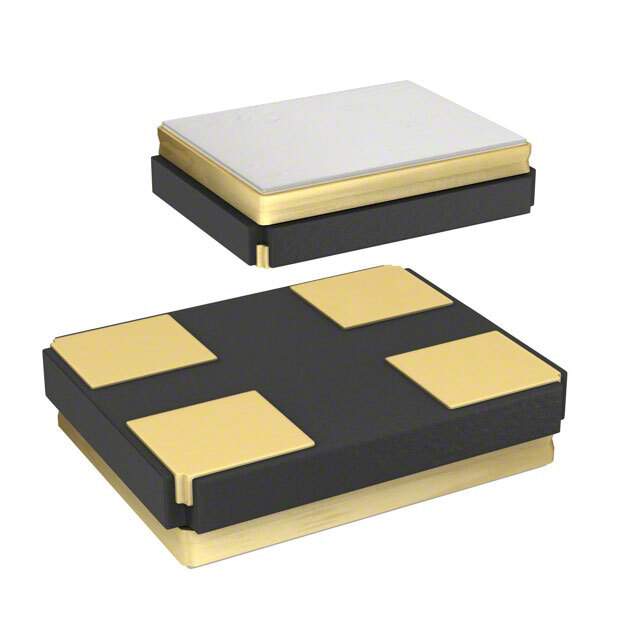

416F32022IKR Real Image
Same model may have multiple batches, images only for reference.

416F32022IKR

Part No 416F32022IKR
Manufacturer CTS-Frequency Controls
Catalog Crystals
Description CRYSTAL 32.000 MHZ 8PF SMT
Datasheet
416F32022IKR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer CTS-Frequency Controls
Series 416
Packaging Reel package
Type MHz Crystal
Frequency 32MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 200 Ohm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Maximum) 0.018" (0.45mm)
Win Source Part Number 761693-416F32022IKR
Popularity Medium
Supply and Demand Status Limited
Introduction Date February 26, 2015
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 416F32022IKR CAD Model

Description

The CTS-Frequency Controls 761693-416F32022IKR from CTS-Frequency Controls is an MHz Crystal type electronic component that comes in a 4-SMD, No Lead packaging.

  • Operating Temperature Range: -40°C ~ 85°C
  • Mounting Style: SMD
  • Frequency: 32MHz
  • ESR: 200 Ohm
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 8pF
  • Operating Mode: Fundamental
  • Category: Crystals, Oscillators, Resonators
  • Dimension: 0.063" L x 0.047" W (1.60mm x 1.20mm)
  • Height: 0.018" (0.45mm)
  • ECCN: EAR99
