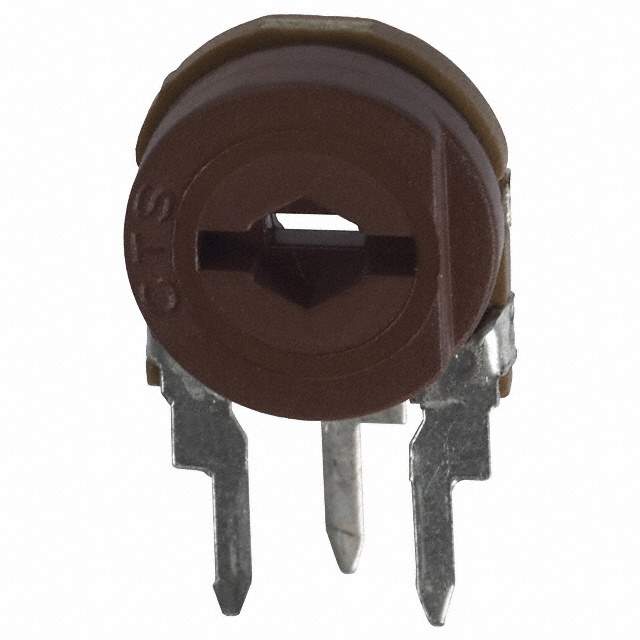

262XR504B Real Image
Same model may have multiple batches, images only for reference.

262XR504B

Part No 262XR504B
Manufacturer CTS Electrocomponents
Catalog Potentiometers, Variable Resistors
Description TRIMMER 500K OHM 0.15W PC PIN / 500 kOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr CTS Electrocomponents
Series 262
Package Bulk
Product Status Obsolete
Resistance 500 kOhms
Power (Watts) 0.15W
Tolerance ±20%
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Carbon
Mounting Type Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.370" x 0.394" Face (9.40mm x 10.00mm)
RoHS Status RoHS non-compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
Other Names X262R504B,X262R504B-ND
Standard Package 1,500
Win Source Part Number 1036199-262XR504B
Ultra Librarian 3D Model Ultra Librarian 262XR504B CAD Model

Description

The 1036199-262XR504B is a carbon trimmer potentiometer manufactured by CTS Electrocomponents.

  • Manufacturer: CTS Electrocomponents
  • Resistance: 500 kOhms
  • Tolerance: ±20%
  • Power Rating: 0.15W
  • Mounting Style: Through-hole
  • Shape: Rectangular
  • Dimension: 0.370" x 0.394" face (9.40mm x 10.00mm)
  • Adjustment Type: Side adjustment
  • Turns: One turn
  • Series: 262 series
  • Termination Style: PC pins
  • Package: Bulk
  • Standard Package: 1,500
  • Alternative Parts: PT10LV10-504A2020, PT10LH01-504A2020, 3319P-1-504, CB10LV474M, 416PA504M, and 3306W-1-504
  • Status: Obsolete
  • RoHS: Non-compliant
