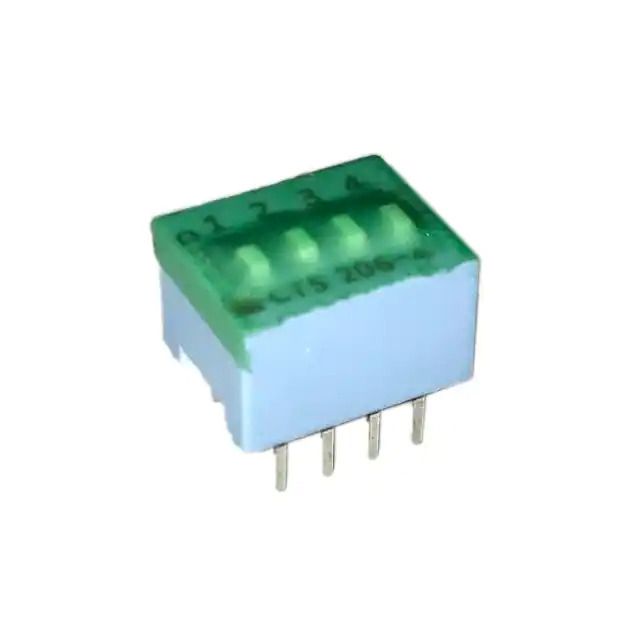

206-4ST CTS Electrocomponents
Same model may have multiple batches, images only for reference.

206-4ST

Part No 206-4ST
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 50MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 206
Package Tube
Product Status Active
Circuit SPST
Number of Positions 4
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material -
Contact Finish Gold
Height Above Board 0.334" (8.48mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material Plastic
Length 0.486" (12.34mm)
Mechanical Life -
Electrical Life 10,000 Cycles
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376374-206-4ST
Ultra Librarian 3D Model Ultra Librarian 206-4ST CAD Model

Description

The 206-4ST is a 4-position DIP switch from CTS Electrocomponents.

  • Temperature Range: -55°C to 85°C
  • Current Rating: 50mA
  • Voltage Rating: 24VDC
  • Actuator Type: Slide
  • Circuit Configuration: SPST
  • Contact Finish: Gold
  • Mounting: Through hole
  • Termination Style: PC pin
  • Mechanical Life: 10,000 cycles
  • Washable: Yes
  • Length: 0.486" (12.34mm)
  • Height Above Board: 0.334" (8.48mm)
  • Material: Plastic
