Same model may have multiple batches, images only for reference.

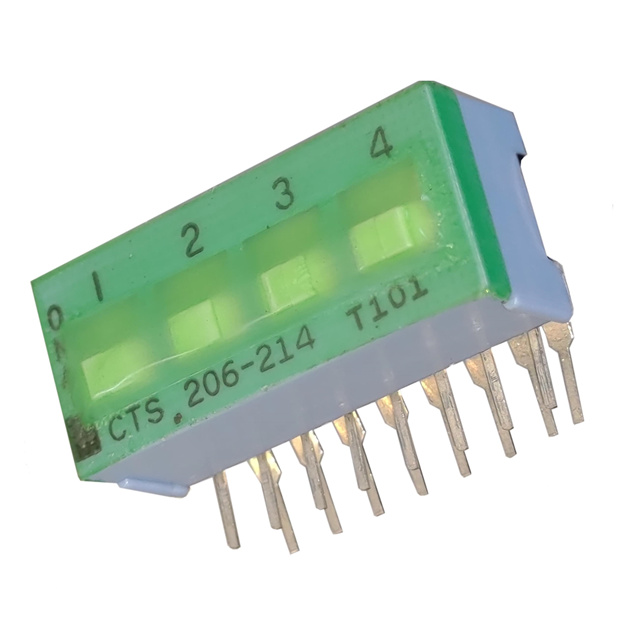

206-214RAST Real Image
Same model may have multiple batches, images only for reference.

206-214RAST

Part No 206-214RAST
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH SLIDE DIP DPST 50MA 24V / Dip Switch DPST 4 Position Through Hole, Right Angle Slide (Standard) Actuator 50mA 24VDC
Datasheet
206-214RAST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 206RA
Package Tube
Circuit DPST
Number of Positions 4
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.400" (10.16mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm) , Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material Plastic
Length 0.886" (22.50mm)
Electrical Life 10,000 Cycles
Standard Package 25
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 1351365-206-214RAST
Ultra Librarian 3D Model Ultra Librarian 206-214RAST CAD Model

Description

The CTS Electrocomponents 1351365-206-214RAST is a through-hole, right-angle dip switch.

  • Mounting Type: Through Hole
  • Orientation: Right Angle
  • Number of Positions: 4
  • Pitch: 0.100 inches (2.54mm), Full
  • Termination Style: PC Pin
  • Features: Epoxy Sealed Terminals, Tape Seal
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Electrical Life: 10,000 Cycles
  • Actuator Type: Slide (Standard)
  • Actuator Level: Raised
  • Washable: Yes
  • Category Application: Switches - DIP Switches
  • Operating Temperature Range: -55°C to 85°C
  • MSL: Not Applicable
  • Current Rating: 50mA
  • REACH Status: REACH unaffected
  • HTSUS: 8536.50.9065
  • California Prop 65 Warning: Available
