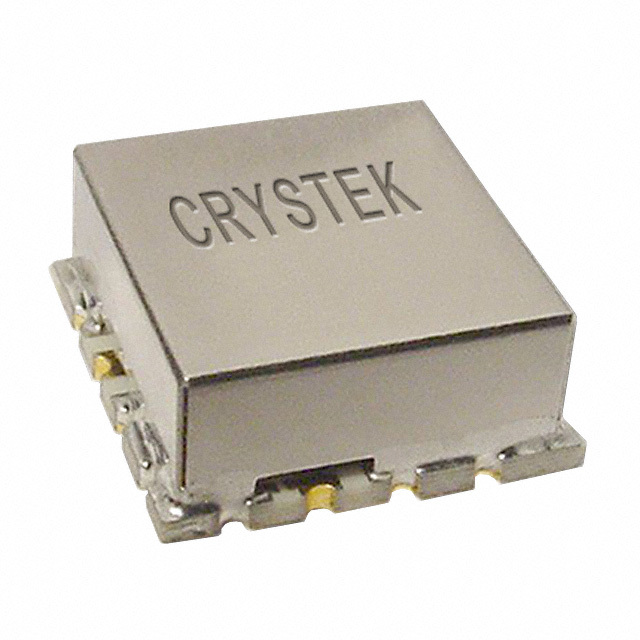

CVCO55CC-1515-1600 Crystek Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CVCO55CC-1515-1600

Part No CVCO55CC-1515-1600
Manufacturer Crystek Corporation
Catalog VCOs (Voltage Controlled Oscillators)
Description VCO 1557.5MHZ 0.5-10V 12.7X12.7
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Frequency Range 1515 ~ 1600MHz
Frequency - Center 1557.5MHz
Voltage - Supply 5V
Tuning Voltage (VDC) 0.5 V ~ 10 V
2nd Harmonic, Typ (dBc) -15
Icc Max 25mA
Pushing (MHz/V) 0.5
Power (dBm) 0 ±3
Phase Noise Typ (dBc/Hz) -116
Temperature Range - Operating -30°C ~ 70°C
Case / Package 16-QFN, Variant
Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height 0.220\
Package Strip
Supply and Demand Status Shortage
Win Source Part Number 1530133-CVCO55CC-1515-1600
Ultra Librarian 3D Model Ultra Librarian CVCO55CC-1515-1600 CAD Model
