Same model may have multiple batches, images only for reference.

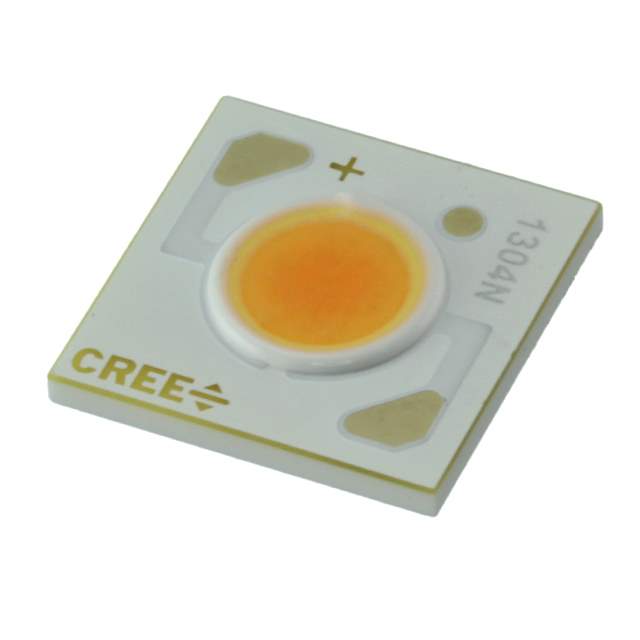

CXA1304-0000-000C00C450H Real Image
Same model may have multiple batches, images only for reference.

CXA1304-0000-000C00C450H

Part No CXA1304-0000-000C00C450H
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1304 COOL WHT SQUARE / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Cool Square
Datasheet
CXA1304-0000-000C00C450H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA1304
Package Tape & Reel (TR)
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 2-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 493lm (475lm ~ 510lm)
Current - Test 400mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 9V
Lumens/Watt @ Current - Test 137 lm/W
Current - Max 1A
CRI (Color Rendering Index) 70
Viewing Angle 115°
Dimension 13.35mm L x 13.35mm W
Height 1.70mm
Light Emitting Surface (LES) 6.00mm Dia
Lens Type Flat
Base Product Number CXA1304
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 100
Win Source Part Number 1008546-CXA1304-0000-000C00C450H
Ultra Librarian 3D Model Ultra Librarian CXA1304-0000-000C00C450H CAD Model

Description

The XLamp® CXA1304 Chip On Board (COB) is a high-performance product designed for optoelectronics and is manufactured by CreeLED, Inc..

  • Package: Tape and Reel
  • Standard Package: 100 units
  • Configuration: Square
  • Viewing Angle: 115°
  • Voltage - Forward (Vf) (Typ): 9V
  • CCT (K): 5000K 2-Step MacAdam Ellipse
  • Luminous Flux @ Current/Temperature: 493lm (475lm ~ 510lm)
  • Application: LED Lighting - COBs, Engines, Modules, Strips
