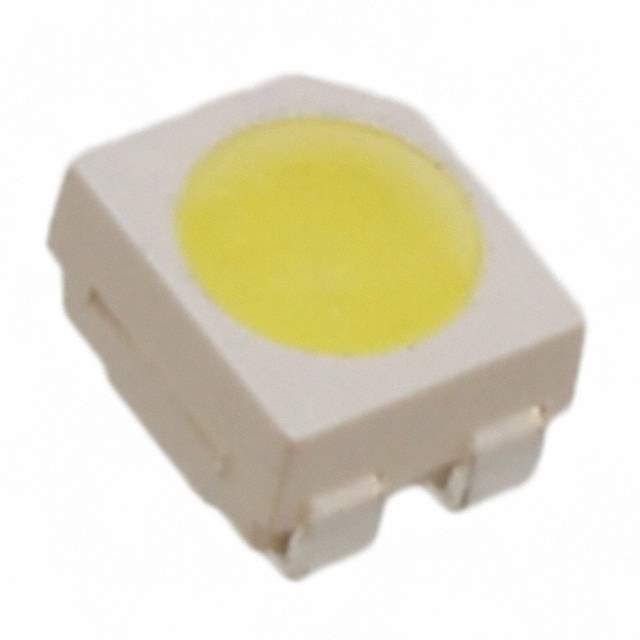

CLA1A-MKW-CWBYA133 Real Image
Same model may have multiple batches, images only for reference.

CLA1A-MKW-CWBYA133

Part No CLA1A-MKW-CWBYA133
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED CLA1A WARM WHT 3200K 4LCC / LED Lighting series White, Warm 3200K 3.6V 30mA 4-PLCC
Datasheet
CLA1A-MKW-CWBYA133 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series CLA1A-WKW/MKW
Package Tape & Reel
Color White, Warm
CCT (K) 3200K
Flux @ 25°C, Current - Test 6lm (Typ)
Current - Test 30mA
Voltage - Forward (Vf) (Typ) 3.6V
Lumens/Watt @ Current - Test 56 lm/W
CRI (Color Rendering Index) 80 (Typ)
Current - Max 35mA
Mounting SMD (SMT)
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Dimension 0.126" L x 0.110" W (3.20mm x 2.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 200°C/W
Base Product Number CLA1A
MSL Level 5A (24 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names CLA1A-MKW -CWBYA133,CLA1A-MKW-CWBYA133-ND,CLA1A-MKW-CWBYA133CT,CLA1A-MKW -CWBYA133-ND,CLA1A-MKW-CWBYA133TR,CLA1A-MKW-CWBYA133DKR
Standard Package 2,000
Win Source Part Number 1106031-CLA1A-MKW-CWBYA133
Ultra Librarian 3D Model Ultra Librarian CLA1A-MKW-CWBYA133 CAD Model

Description

The CreeLED CLA1A-MKW-CWBYA133 is an LED lighting product that comes in white and warm colors.

  • Manufacturer: CreeLED
  • Colors: White and Warm
  • Application: Optoelectronics
  • Packaging: Tape and Reel
  • Seated Height: 0.083 inches (2.10mm)
  • Forward Voltage: 3.6V
  • Maximum Current: 35mA
  • CCT: 3200K
  • CRI: 80 (Typical)
  • Luminous Flux @ 25°C, Current-Test: 6lm (Typ)
  • Lumens/Watt @ Current-Test: 56 lm/W
  • Thermal Resistance: 200°C/W
  • Dimension: 0.126 inches L x 0.110 inches W (3.20mm x 2.80mm)
  • Series: CLA1A-WKW/MKW
  • Alternative Parts: CLA1A-WKW-CXAYB153, CLA1A-WKB-CWBYA153, CLA1B-WKW-XD0F0E13
  • MSL Level: 5A (24 hours)
  • REACH: REACH unaffected
  • HTSUS Code: 8541.41.0000
