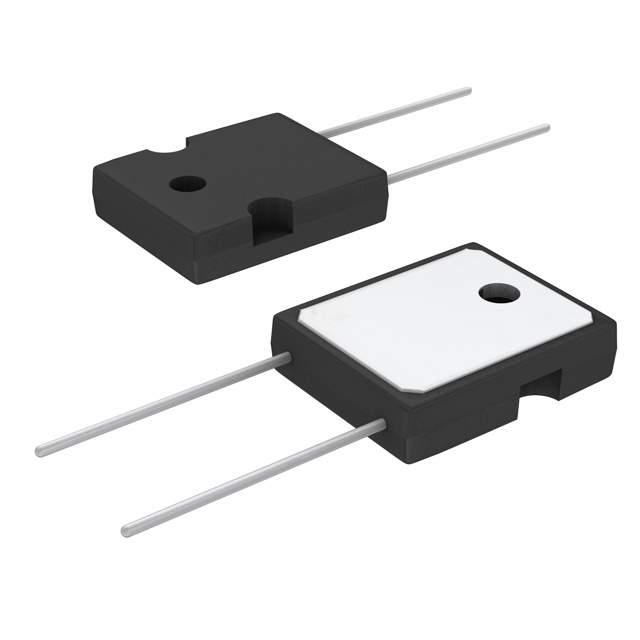

C5D05170H Real Image
Same model may have multiple batches, images only for reference.

C5D05170H

Part No C5D05170H
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Wolfspeed, Inc.
Series Z-Rec®
Package Tube
Product Status Obsolete
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1700 V
Current - Average Rectified (Io) 18A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 5 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 200 µA @ 1700 V
Capacitance @ Vr, F 425pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247-2
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number C5D05170
Standard Package 30
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281107-C5D05170H
Ultra Librarian 3D Model Ultra Librarian C5D05170H CAD Model

Description

The Win Source Part Number 1281107-C5D05170H is a silicon carbide Schottky diode with a voltage rating of 1700V and a current rating of 18A.

  • Recovery Time: no recovery time greater than 500mA (Io)
  • Package: tube
  • Series: Z-Rec
  • Mounting Type: through-hole
  • Standard Package: 30
  • ECCN: EAR99
  • MSL Level: not applicable
  • HTSUS: 8541.10.0080
