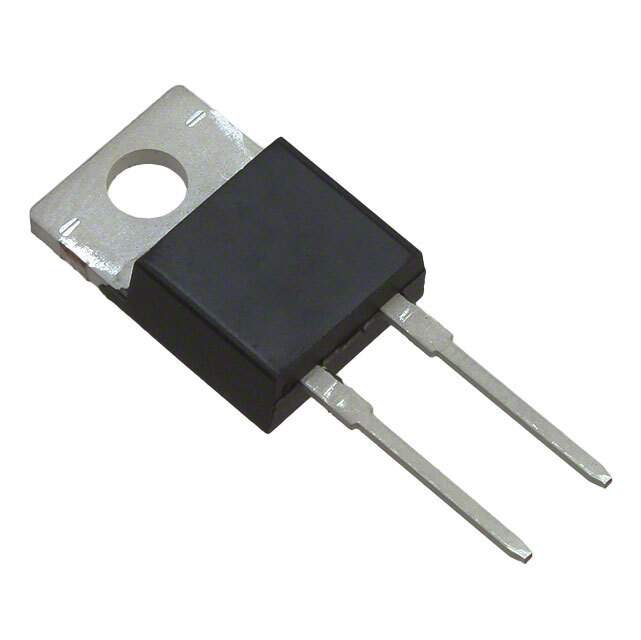

C3D04065A Real Image
Same model may have multiple batches, images only for reference.

C3D04065A

Part No C3D04065A
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Schottky 650V 13.5A Automotive 2-Pin(2+Tab) TO-220 / DIODE SCHOTTKY 650V 4A TO220-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Packaging Tube/Rail
Status Active
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650V
Current - Average Rectified (Io) 4A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8V @ 4A
Speed(Frequency) No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 60μA @ 650V
Capacitance @ Vr, F 251pF @ 0V, 1MHz
Mounting Through Hole
Case / Package TO-220-2
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 1027285-C3D04065A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name C3D04065A
Introduction Date September 02, 2015
ECCN EAR99
Country of Origin China, Philippines, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian C3D04065A CAD Model

Description

The Cree/Wolfspeed C3D04065A is a silicon carbide Schottky diode with a maximum reverse voltage of 650V and an average rectified current of 4A.

  • Manufacturer: Cree/Wolfspeed
  • Product Name: C3D04065A
  • Type: Silicon Carbide Schottky Diode
  • Reverse Voltage (Max): 650V
  • Average Rectified Current: 4A
  • Forward Voltage: 1.8V @ 4A
  • Reverse Recovery Time: 0ns
  • Mounting: Through Hole
  • Package: TO-220-2
  • Capacitance: 251pF @ 0V, 1MHz
  • Junction Temperature: -55°C to 175°C
  • Halogen-Free: Compliant
  • Common-Used Part: Yes
  • Popularity: High
  • Supply and Demand: Balanced
