Same model may have multiple batches, images only for reference.

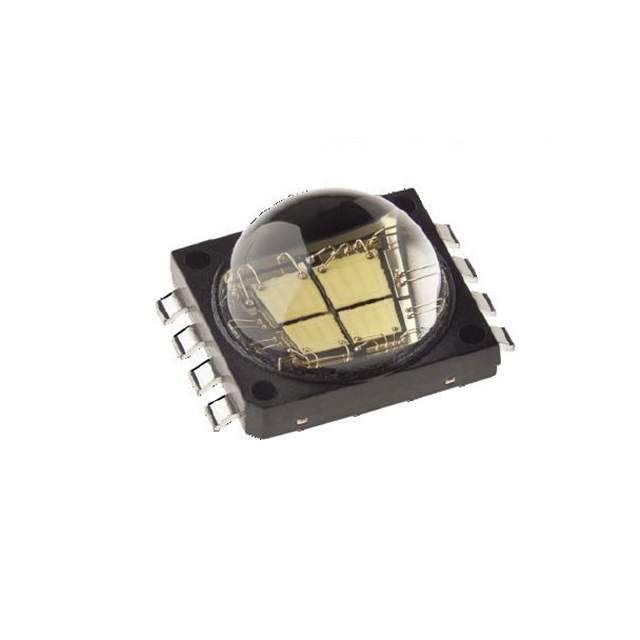

MCE4WT-A2-0000-000M02 Real Image
Same model may have multiple batches, images only for reference.

MCE4WT-A2-0000-000M02

Part No MCE4WT-A2-0000-000M02
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description LED Uni-Color Cool White 10000K 8-Pin SMD / LED XLAMP COOL WHITE 6350K 8SMD
Datasheet
MCE4WT-A2-0000-000M02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp MC-E
Packaging Reel package
Color White, Cool
CCT (K) 6350K
Flux @ 25°C, Current - Test 460 lm (430 lm ~ 490 lm)
Current - Test 4 x 350mA
Voltage - Forward (Vf) (Typ) 3.1V
Lumens/Watt @ Current - Test 106 lm/W
Current - Max 4 x 700mA
Viewing Angle 110°
Mounting SMD
Package 8-SMD, Gull Wing Exposed Pad
Dimension 0.276" L x 0.295" W (7.00mm x 7.50mm)
Height - Seated (Maximum) 0.181" (4.60mm)
Thermal Resistance of Package 3°C/W
Win Source Part Number 788187-MCE4WT-A2-0000-000M02
Popularity Medium
Supply and Demand Status Limited
Family Name MCE4WT-A2-0000-000M02
Introduction Date January 30, 2009
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MCE4WT-A2-0000-000M02 CAD Model

Description

The MCE4WT-A2-0000-000M02 from Cree is a white or cool colored LED.

  • Package: 8-SMD, Gull Wing Exposed Pad
  • Maximum Current: 4 x 700mA
  • Typical Forward Voltage: 3.1V
  • Viewing Angle: 110 degrees
  • CCT: 6350K
  • Flux @ Test Current: 460 lm @ 4 x 350mA
  • Lumens/Watt: 106 lm/W
  • Thermal Resistance: 3 degrees Celsius per watt
  • Dimensions: 0.276 inches L x 0.295 inches W x 0.181 inches H
