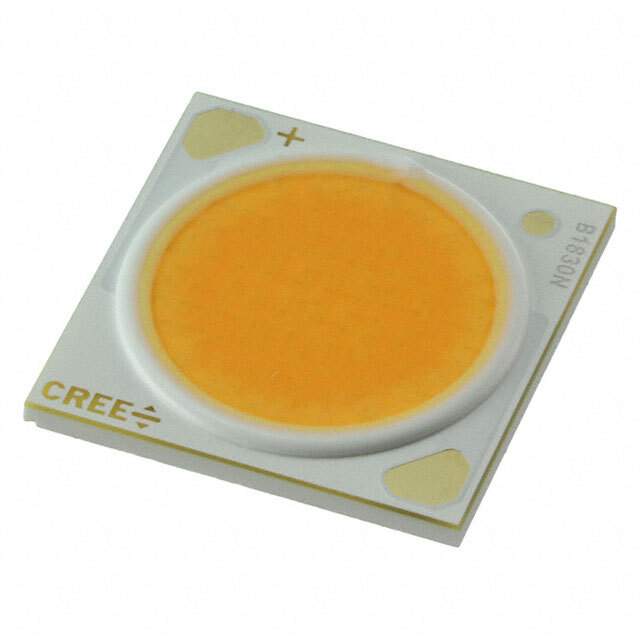

CXB1830-0000-000N0HU230G Real Image
Same model may have multiple batches, images only for reference.

CXB1830-0000-000N0HU230G

Part No CXB1830-0000-000N0HU230G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARR 14MM 3000K 80CRI 3680LM / LED Modules Uni-Color White 2-Pin SMD Tray
Datasheet
CXB1830-0000-000N0HU230G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series Xlamp CXB1830
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 3818 lm (3680 lm ~ 3955 lm)
Current - Test 800mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 133 lm/W
Current - Max 1.4A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 14.00mm Diameter
Lens Type Flat
Win Source Part Number 771984-CXB1830-0000-000N0HU230G
Popularity Medium
Supply and Demand Status Limited
Family Name CXB1830-0000-000N0HU230G
Introduction Date February 06, 2015
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CXB1830-0000-000N0HU230G CAD Model

Description

The Cree Inc. product is a chip on board (COB) type with a square configuration.

  • Viewing Angle: 115 degrees
  • Voltage Forward: 36V (typ)
  • Current Max: 1.4A
  • Current Test: 800mA
  • Packaging: Tray
  • Family Name: CXB1830-0000-000N0HU230G
  • Height: 1.70mm
  • Lens Type: Flat
  • CCT (K): 3000K 3-Step MacAdam Ellipse
  • Luminous Efficiency: 133 lm/W @ current test
  • CRI (Color Rendering Index): 80
  • Flux @ Current/Temperature test: 3818 lm (3680 lm ~ 3955 lm) @ 85 degrees Celsius
  • LES Diameter: 14.00mm
  • Dimension: 17.85mm L x 17.85mm W
  • Category: Optoelectronics
  • Introduction Date: February 06, 2015
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2027
