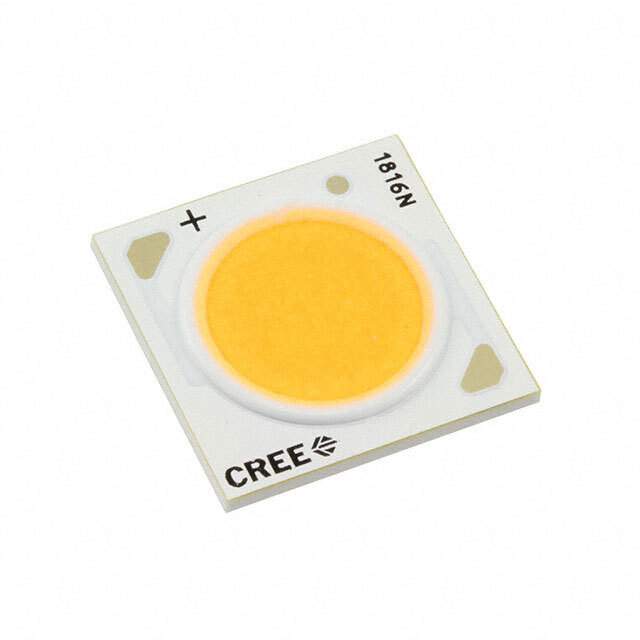

CXB1816-0000-000N0HP430G Real Image
Same model may have multiple batches, images only for reference.

CXB1816-0000-000N0HP430G

Part No CXB1816-0000-000N0HP430G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description XLamp LED
Datasheet
CXB1816-0000-000N0HP430G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series Xlamp CXB1816
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2033 lm (1965 lm ~ 2100 lm)
Current - Test 450mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 125 lm/W
Current - Max 900mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 1163819-CXB1816-0000-000N0HP430G
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Limited
Family Name CXB1816-0000-000N0Hp430G
Introduction Date February 06, 2015
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CXB1816-0000-000N0HP430G CAD Model

Description

The Cree CXB1816-0000-000N0Hp430G is a chip-on-board (COB) LED that comes in a square configuration.

  • Viewing Angle: 115 degrees
  • Forward Voltage: 36V
  • Height: 1.70mm
  • LES Diameter: 12.00mm
  • Color: Warm White
  • CCT: 3000K
  • Current-Max: 900mA
  • Current-Test: 450mA
  • Lumens/Watt @ Current-Test: 125 lm/W
  • CRI: 80
  • Flux @ Current/Temperature-Test: 2033 lm
  • Temperature-Test: 85 degrees Celsius
  • Halogen-Free: Compliant
  • Popularity: Medium
  • Estimated EOL Date: 2025
