Same model may have multiple batches, images only for reference.

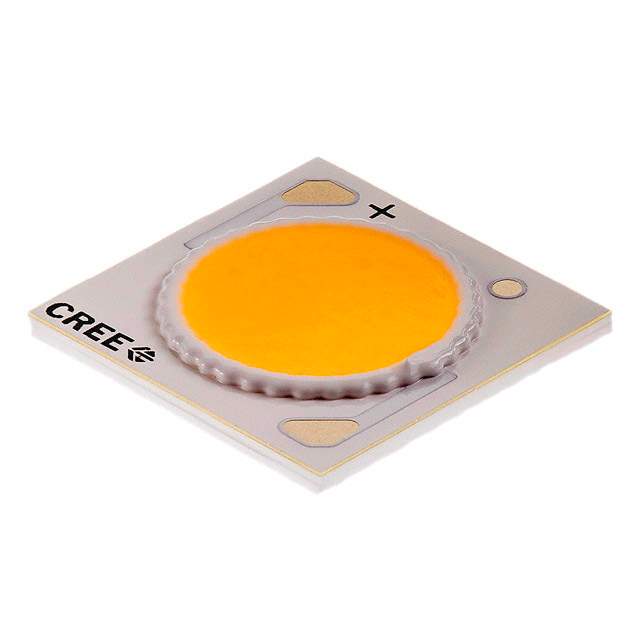

CXA1816-0000-000N00N230F Real Image
Same model may have multiple batches, images only for reference.

CXA1816-0000-000N00N230F

Part No CXA1816-0000-000N00N230F
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description CXA1816 LED array expands Crees family of high flux, multi die arrays in a smaller
Datasheet
CXA1816-0000-000N00N230F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1816
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 4-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1650 lm (1590 lm ~ 1710 lm)
Current - Test 450mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 99 lm/W
Current - Max 900mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 1163781-CXA1816-0000-000N00N230F
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Limited
Family Name CXA1816-0000-000N00N230F
Introduction Date May 23, 2013
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CXA1816-0000-000N00N230F CAD Model

Description

The Cree Inc. 1163781-CXA1816-0000-000N00N230F is a chip-on-board (COB) LED from the XLamp CXA1816 series.

  • Shape: Square
  • Color: White, warm
  • Viewing Angle: 115 degrees
  • Forward Voltage: 37V
  • Maximum Current: 900mA
  • Flux: 1650 lumens @ 450mA, 85 degrees Celsius
  • Light-Emitting Surface (LES) Diameter: 12.00mm
  • Halogen-Free: Compliant
