Same model may have multiple batches, images only for reference.

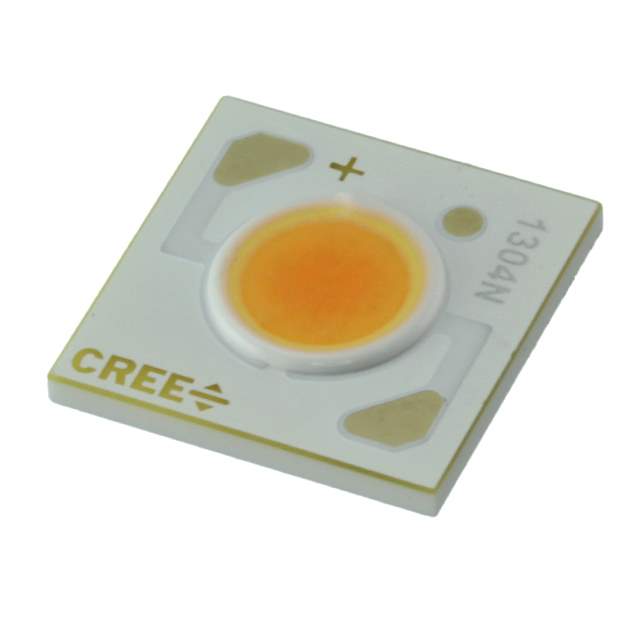

CXA1304-0000-000N00B227G Real Image
Same model may have multiple batches, images only for reference.

CXA1304-0000-000N00B227G

Part No CXA1304-0000-000N00B227G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1304 2700K WHITE SMD
Datasheet
CXA1304-0000-000N00B227G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1304
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 395 lm (380 lm ~ 410 lm)
Current - Test 100mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 110 lm/W
Current - Max 250mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 13.35mm L x 13.35mm W
Height 1.70mm
Light Emitting Surface (LES) 6.00mm Diameter
Lens Type Flat
Win Source Part Number 771953-CXA1304-0000-000N00B227G
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CXA1304-0000-000N00B227G CAD Model

Description

The Cree XLamp CXA1304 is a chip on board (COB) type electronic component that is perfect for lighting applications.

  • Maximum Current: 250mA
  • Forward Voltage: 36V
  • Color: Warm White
  • CRI: 80
  • Color Temperature: 2700K
  • Viewing Angle: 115 degrees
  • Light Emitting Surface (LES): 6.00mm diameter
  • Flux: 395 lm @ 100mA/85°C
  • Lumens/Watt: 110 lm/W @ 100mA/85°C
